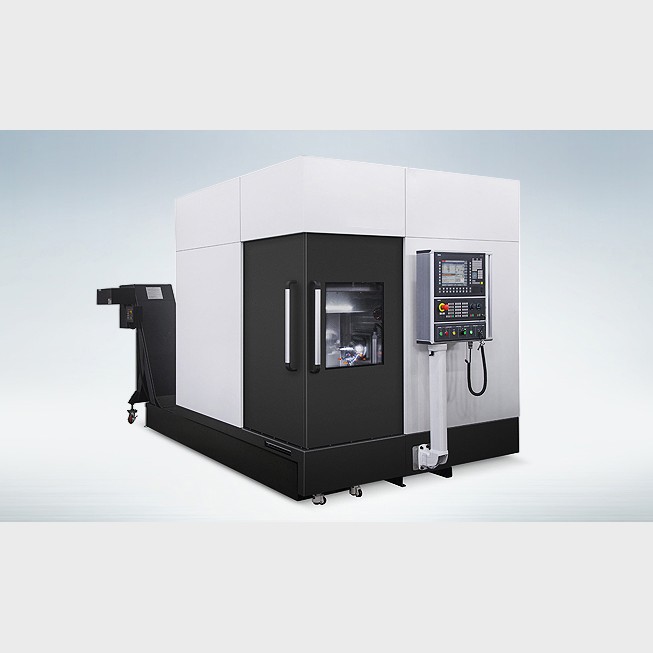

FM20 5-axis Vertical Machining Center

Product Item：FM20

Table Size: Ø260mm

Travel(X/Y/Z): 300/300/200mm

Spindle Taper: HSK-E40

No. of Tools: 20EA

Description

Features

- - One-piece bed & column structure to increase structural stability
  - World class acceleration and deceleration speed of 1.2G
  - Linear and rotary scale as standard features for the high quality of machining

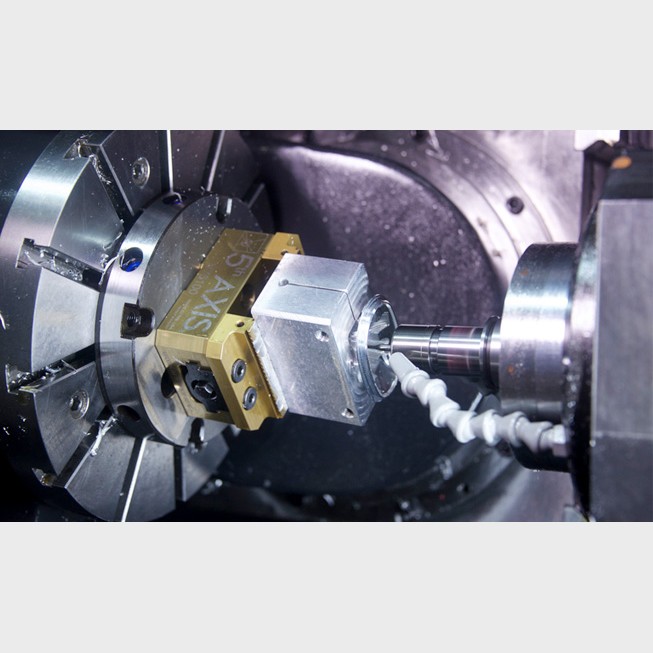

  - Cantilever type DDM table
  - 24,000rpm high-speed built-in spindle
  - Spindle cooling device ensures stable machining capability even during the long work

Specifications

Units of Measure: mm

Description	Unit	FM20
Table Size	mm	Ø260
Max. Load Capacity	kg	50
Spindle Driving Method	-	Built in
Spindle Taper	-	HSK-E40
Spindle RPM	r/min	24,000
Spindle Power	kW	12.5/8
Spindle Torque	N.m	9.3/6
Travel(X/Y/Z)	mm	300/300/200
Rapid Feed Rate(X/Y/Z)	m/min	50/50/50
Slide Type	-	ROLLER
No. of Tools	EA	20
Tool Change Time (Chip To Chip)	sec	4.5
CNC	-	SIEMENS 840D sl

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
