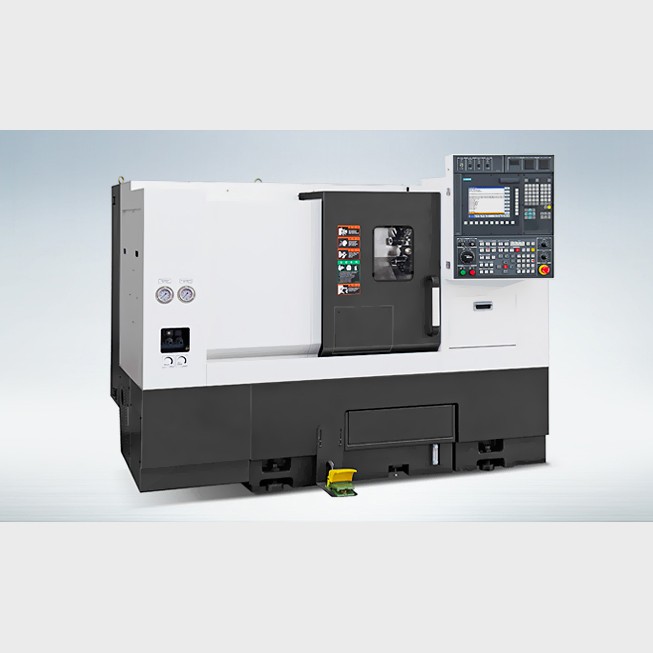

Description
Features
- 45° slanted one-piece rigid bed structure
- Minimal thermal distortion
- Machine structure designed to maximize productivity
- Best in class rapid traverse rate : 30m/min
- The most reliable high speed servo turret : 0.1sec/step
- Environmental friendly, separate coolant and lubrication design
- Compact design, able to install within a limited space.
- Ergonomic design allows convenient access to chuck and tools
Specifications
Units of Measure:
| Description | Unit | TC16A |
|---|---|---|
| Max Turning Dia | mm | 280 |
| Max Turning Length | mm | 300 |
| Chuck Size | inch | 6″ |
| Driving Method | - | Belt |
| Spindle RPM | r/min | 6,000 |
| Spindle Output | kW | 11/7.5 |
| Spindle Torque | N.m | 35.8/70 |
| Travel(X/Z) | mm | 165/330 |
| Rapid Travel(X/Z) | m/min | 30/30 |
| Slide Type | - | LM |
| No. of Tools | EA | 12 |
| Tool Size | mm | 20/32 |
| CNC | - | H/W FANUC i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
