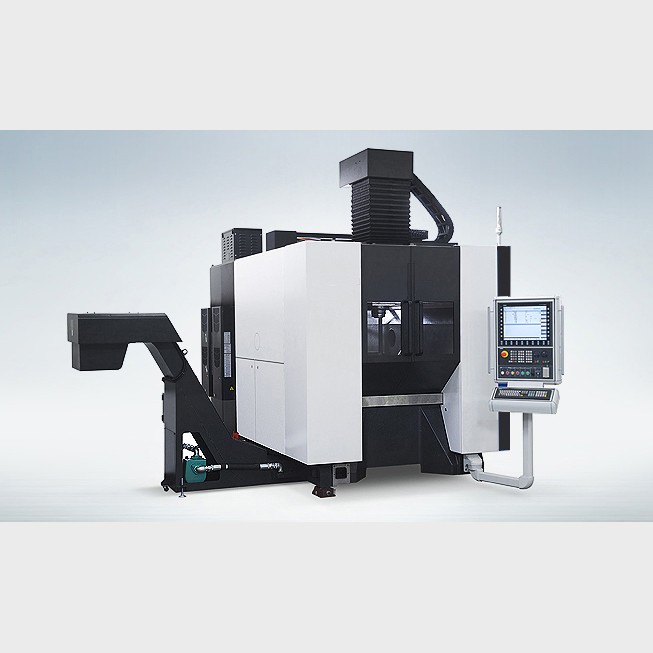

FM63 5-axis Vertical Machining Center

Product Item：FM63

Table Size: 630×400mm

Travel(X/Y/Z): 650/600/500mm

Spindle Taper: HSK-A63

No. of Tools: 34EA

Description

Features

Increases strength with all-in-one bed & column structure
Machines High-precision parts with x-axis box-in-box structure

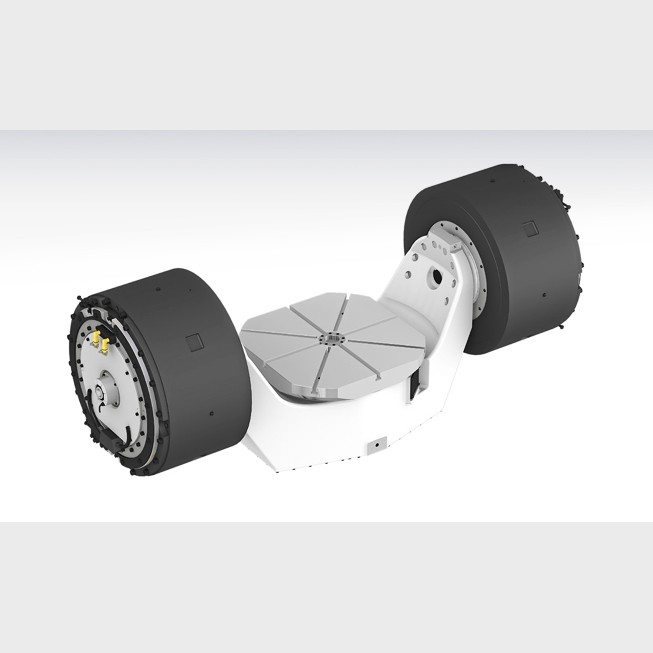

Built-in DDM table
Standard 34-tool ring-type ATC (C-C time: 4.5 sec.)
19" LCD monitor

Specifications

Units of Measure: mm

Description	Unit	FM63
Table Size	mm	630×400
Max. Load Capacity	kg	600
Spindle Driving Method	-	Built in
Spindle Taper	-	HSK-A63
Spindle RPM	r/min	15,000
Spindle Power	kW	31/25
Spindle Torque	N.m	153/123
Travel(X/Y/Z)	mm	650/600/500
Rapid Feed Rate(X/Y/Z)	m/min	60/60/60
Slide Type	-	ROLLER
No. of Tools	EA	34
Tool Change Time (Chip To Chip)	sec	4.5
CNC	-	S840D

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
