Description
Features

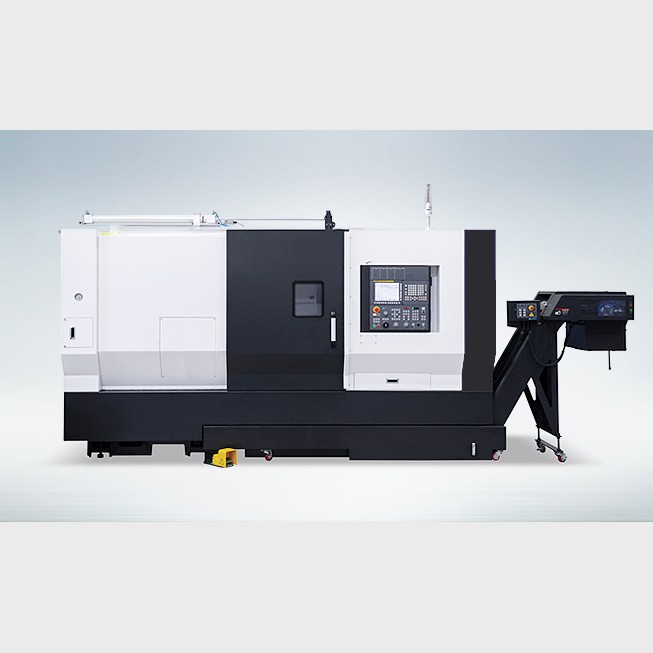

- Horizontal T/C for AL wheel cutting - Max cutting wheel size: 24"

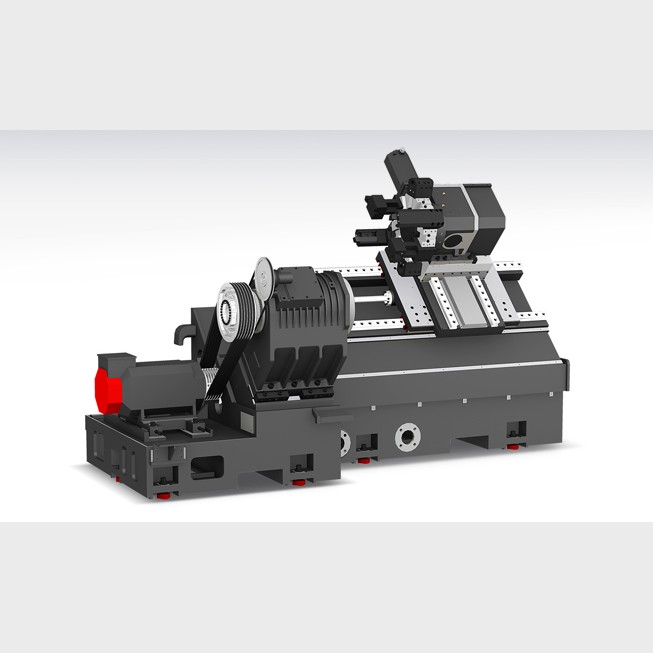

- Optimized bed design for high quality AL wheel cutting (1Ton increased compare to existing model)
- Roller type LM guide with ultra wide witdth
- Powerful spindle for heavy-duty cutting (92.4N.m of Torque has increased compare to the existing model)
Specifications
Units of Measure:
| Description | Unit | KL65AW |
|---|---|---|
| Max Turning Dia | mm | 660 |
| Max Turning Length | mm | 720 |
| Wheel Size | inch | 24″ |
| Driving Method | - | Belt |
| Spindle RPM | r/min | 2,000 |
| Spindle Output | kW | 30/37 |
| Spindle Torque | N.m | 553 |
| Travel(X/Z) | mm | 400/720 |
| Rapid Travel(X/Z) | m/min | 20/24 |
| Slide Type | - | LM |
| No. of Tools | EA | 12 |
| Tool Size | mm | 32/63 |
| CNC | - | H/W FANUC i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
