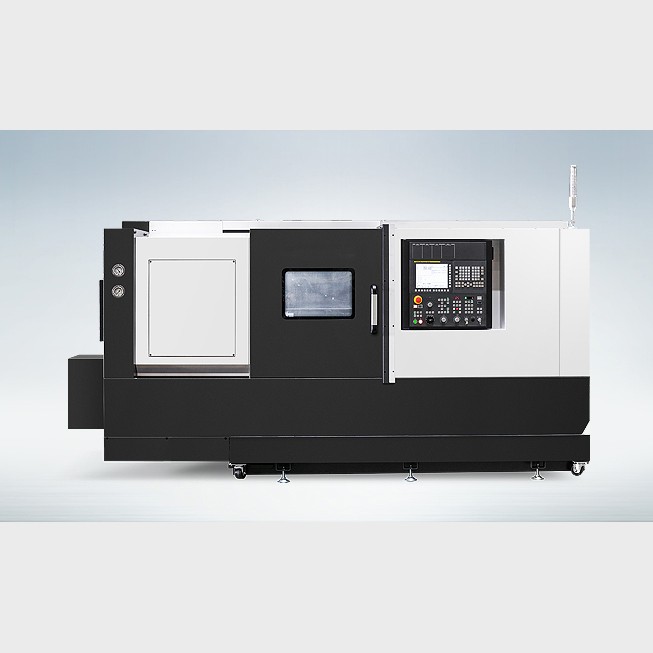

TCB31 | TCB31L | TCB31M | TCB31LM Turning Centers High Performance

Description

Features

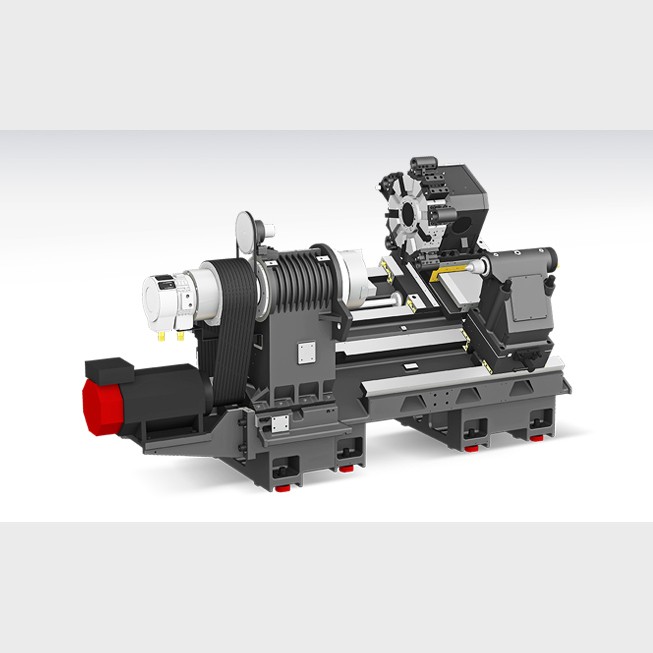

• • • • • • Box guideways for heavy-duty cutting
          • Stabilized unit structure to minimize thermal displacement
          • User convenient structure for high productivity
          • Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)

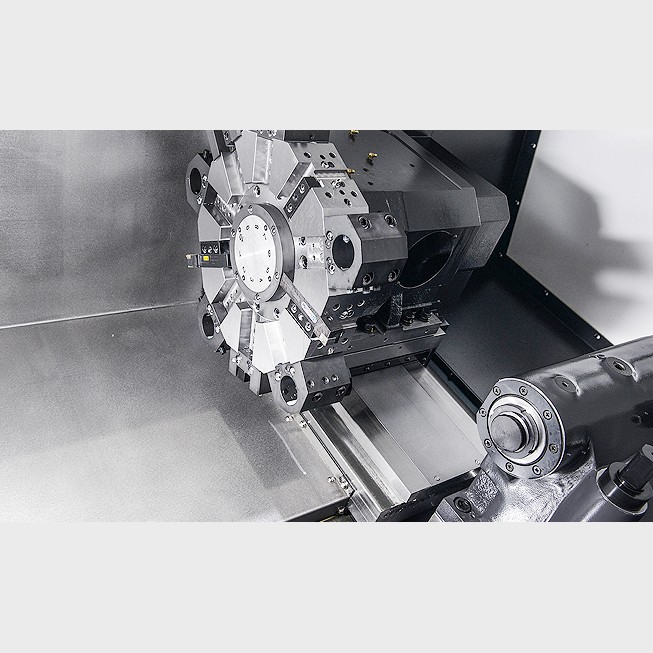

          • High-rigidity and high-speedd servo turret (Expanded disk width)



Specifications

Units of Measure: mm

Description	Unit	TCB31	TCB31L	TCB31M	TCB31LM
Max Turning Dia	mm	500	500	420	420
Max Turning Length	mm	780	1,300	740	1,260
Chuck Size	inch	12″	12″	12″	12″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	2,800	2,800	2,800	2,800
Spindle Output	kW	26/18.5	26/18.5	26/18.5	26/18.5
Spindle Torque	N.m	1,123/657	1,123/657	1,123/657	1,123/657
Travel(X/Z)	mm	265/830	265/1,350	265/830	265/1,350
Rapid Travel(X/Z)	m/min	24/30	24/30	24/30	24/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	10	10	12	12
Tool Size	mm	25/50	25/50	25/50	25/50
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
