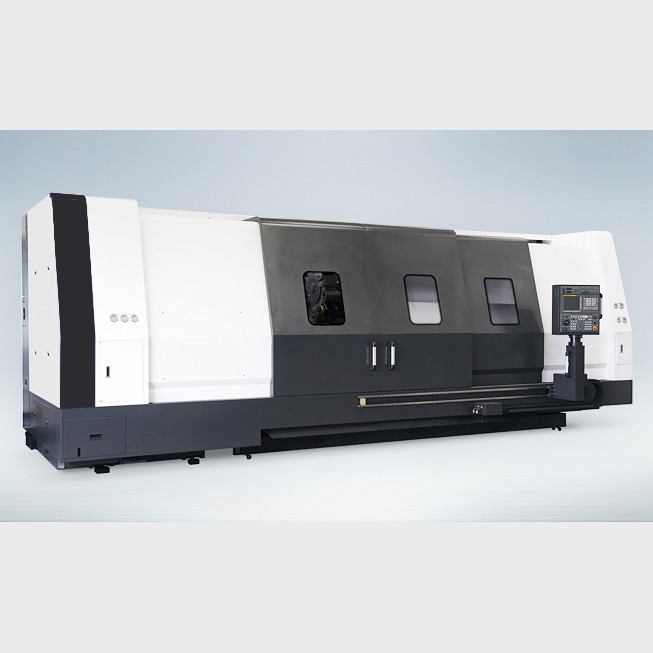

TC70L | TC70LM Turning Centers High Performance

Description

Features

• • • Box guideways on all axis ensuring high rigidity in heavy cutting conditions
    • One-piece bed structure for high accuracy and sturdiness
    • Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy
    • Minimized spindle thermal distortion
    • Gear box used for the main spindle (TC60/70 Series : 3 step/ TC80 Series : 2 step)
    • Optional Long Bed design capable of processing a maximum length of 3,250mm (127.9″)

Specifications

Units of Measure: mm

Description	Unit	TC70L	TC70LM
Max Turning Dia	mm	920	920
Max Turning Length	mm	3,250	3,250
Chuck Size	inch	24″	24″
Driving Method	-	GEAR	GEAR
Spindle RPM	r/min	1,500	1,500
Spindle Output	kW	45/37	45/37
Spindle Torque	N.m	6,978/5,700	6,978/5,700
Travel(X/Z)	mm	500/3,280	500/3,280
Rapid Travel(X/Z)	m/min	12/12	12/12
Slide Type	-	BOX	BOX

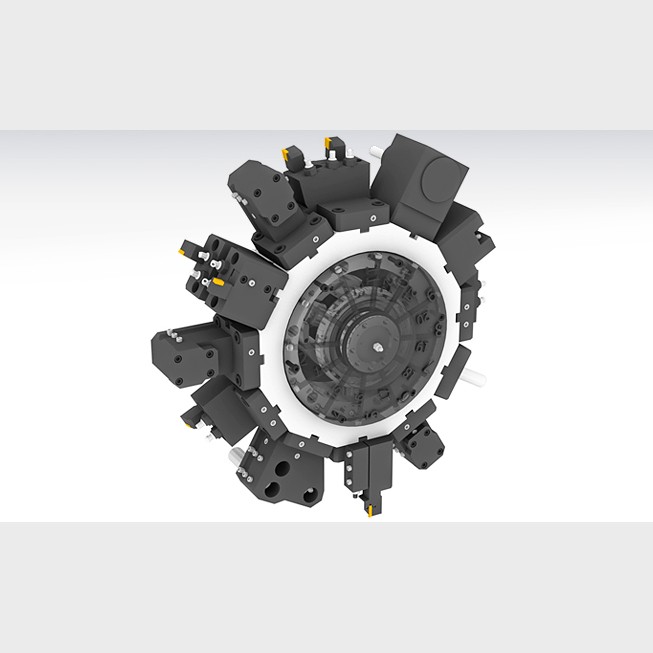

No. of Tools	EA	12	12
Tool Size	mm	32/80	32/80

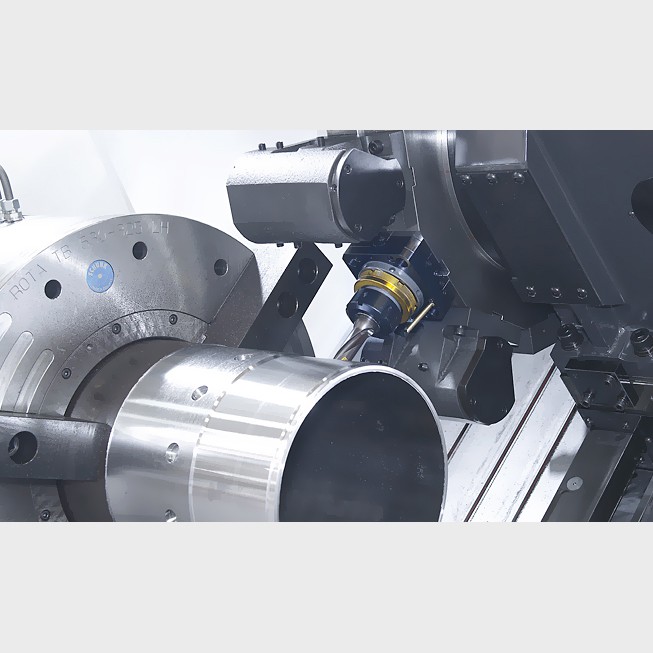

Milling Tool Speed	r/min	-	3,000
CNC	-	F32i	F32i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
