Description
Features
- Box guides on all axis for ultra-rigidity

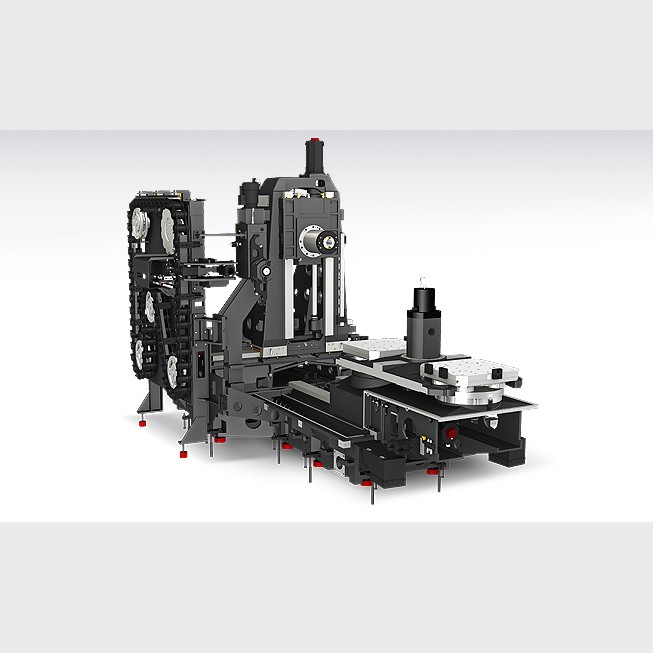

- Step type bed structure

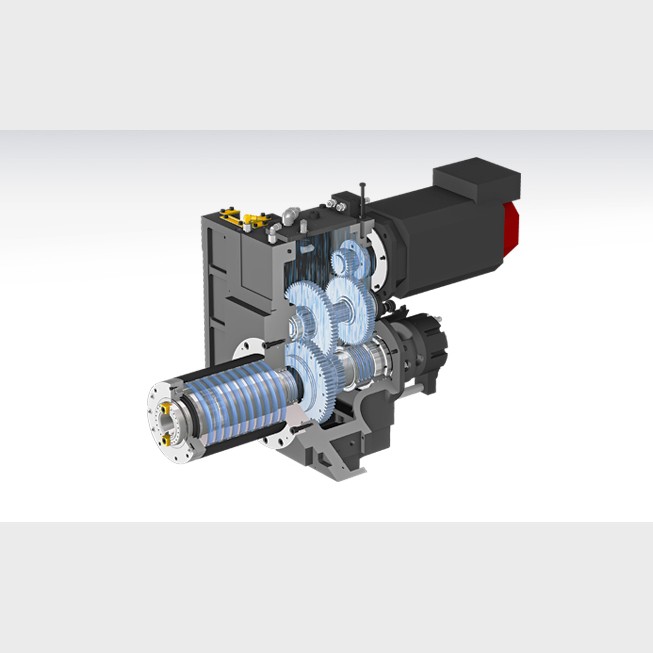

- 2 Step geared spindle for heavy duty cutting
- Fast pallet change time by application of rotary turn type APC
- Possible to adopt the largest tool in its class
- Adoptable larger workpiece compared to existing model
- Adopted the latest FANUC 31i-B PLUS
Specifications
Units of Measure:
| Description | Unit | HB63S | HB80S |
|---|---|---|---|
| Pallets Size | mm | 630×630 | 800×800 |
| Max. Load Capacity | kgf | 2 - 1,200 | 2 - 2,000 |
| Spindle Driving Method | - | GEAR(2STEP) | GEAR(2STEP) |
| Spindle Taper | - | BT50 | BT50 |
| Spindle RPM | r/min | 6,000 | 6,000 |
| Spindle Power | kW | 45/22 | 45/22 |
| Spindle Torque | N.m | 2,193/1,074 | 2,193/1,074 |
| Travel(X/Y/Z) | mm | 1,050/850/1,000 | 1,400/1,050/1,200 |
| Rapid Feed Rate(X/Y/Z) | m/min | 30/30/30 | 24/24/24 |
| Slide Type | - | BOX | BOX |
| No. of Tools | EA | 60 | 60 |
|
Tool Change Time (Chip To Chip) |
sec | 6.9 | 7.5 |
| No. of Pallets | EA | 2 | 2 |
| APC Type | - | ROTARY TRUN | ROTARY TRUN |
| Pallet Change Time | sec | 12 | 16 |
| CNC | - | F31i | F31i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
