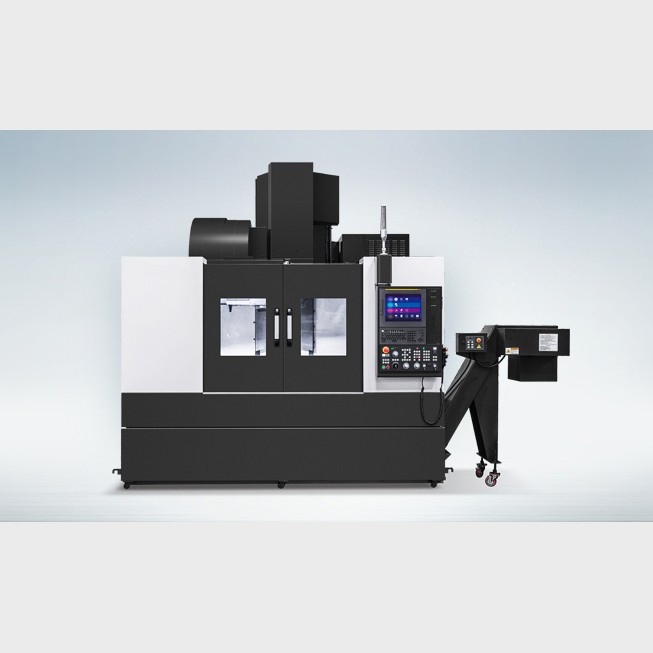

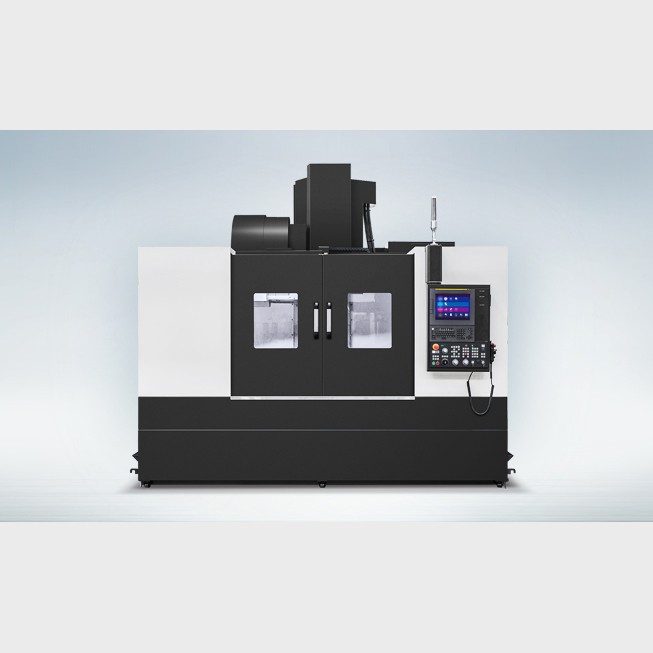

KV56M | KV67M High Speed Machining Center

Product Item：KV56M | KV67M

Table Size: 1250×560mm/1500×670mm

Spindle RPM: 20,000r/min

Spindle Taper: BBT40

No. of Tools: 30EA

Description

Features

- - - Built-in 20,000rpm spindle for a high-quality mold processing
    - Mold packages for optimum mold manufacturing
    - High-speed roller type LM guide and ball screw.
    - Enhanced chip processing capabilities by applying the upper type conveyor

Specifications

Units of Measure: mm

Description	Unit	KV56M	KV67M
Table Size	mm	1250×560	1500×670
Max. Load Capacity	kg	1,000	1,300
Spindle Driving Method	-	Built in	Built in
Spindle Taper	-	BBT40	BBT40
Spindle RPM	r/min	20,000	20,000
Spindle Power	kW	22/18.5	22/18.5
Spindle Torque	N.m	98/80	98/80
Travel(X/Y/Z)	mm	1100/560/520	1300/670/635
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30
Slide Type	-	LM	LM
No. of Tools	EA	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2
CNC	-	FANUC 31i-B	FANUC 31i-B

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
