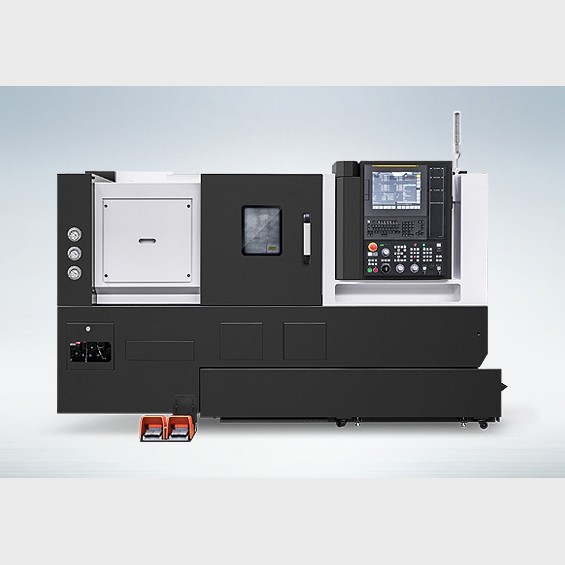

TC22LMSA TC22LMS TC22LMSC Turning Centers Compact

Description

Features

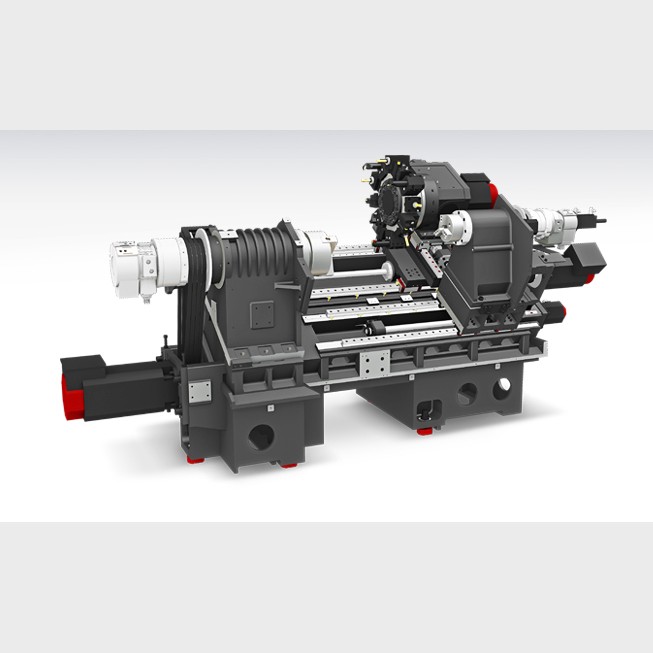

• • • • • • 30° slanted one-piece bed structure with high rigidity
          • Ensured high-rigidity applying Roller guideway on all axes (X/Z-axis: 30/36m/min)
          • Improved user convenience by applying the latest controller of FANUC
          • Prepared user-oriented lineup including long-bed, mill turret and sub-spindle

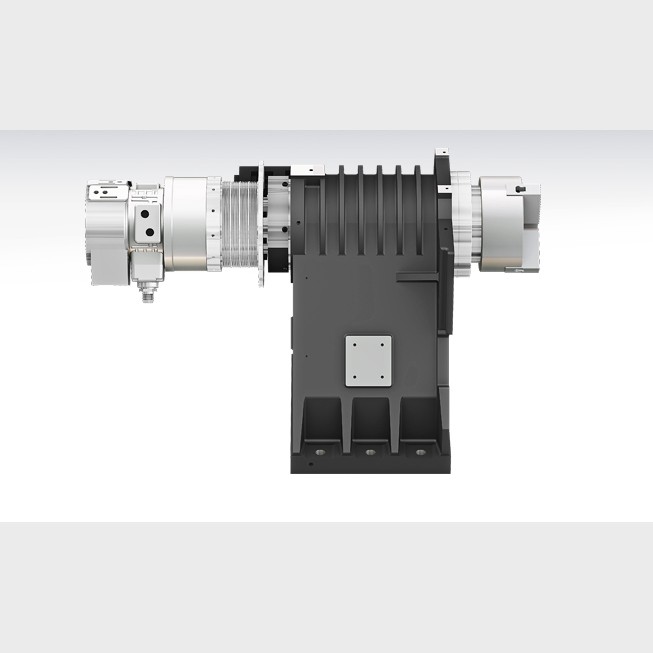

          • Compact structure with internal-motor design (for standard-type bed)
          • Ergonomic design for convenient access to chuck and tool



Specifications

Units of Measure: mm

Description	Unit	TC22LMSA	TC22LMS	TC22LMSC
Max Turning Dia	mm	300	300	300
Max Turning Length	mm	529	508	499
Chuck Size	inch	Main 6″ Sub 5″	Main 8″ Sub 5″	Main 10″ Sub 5″
Driving Method	-	Belt	Belt	Belt
Spindle RPM	r/min	6,000	4,500	3,500
Spindle Output	kW	15/11	15/11	18.5/11
Spindle Torque	N.m	127/70	167/92	270/120
Travel(X/Z)	mm	210/560	210/560	210/560
Rapid Travel(X/Z)	m/min	30/36	30/36	30/36
Slide Type	-	LM	LM	LM

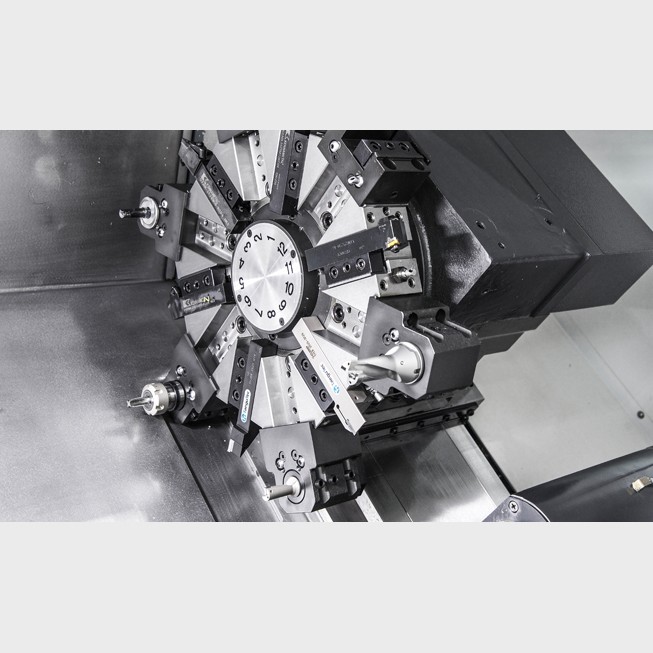

No. of Tools	EA	12	12	12
Tool Size	mm	20/32	20/32	20/32
Milling Tool Speed	r/min	6,000	6,000	6,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
