Description
Features
-
-

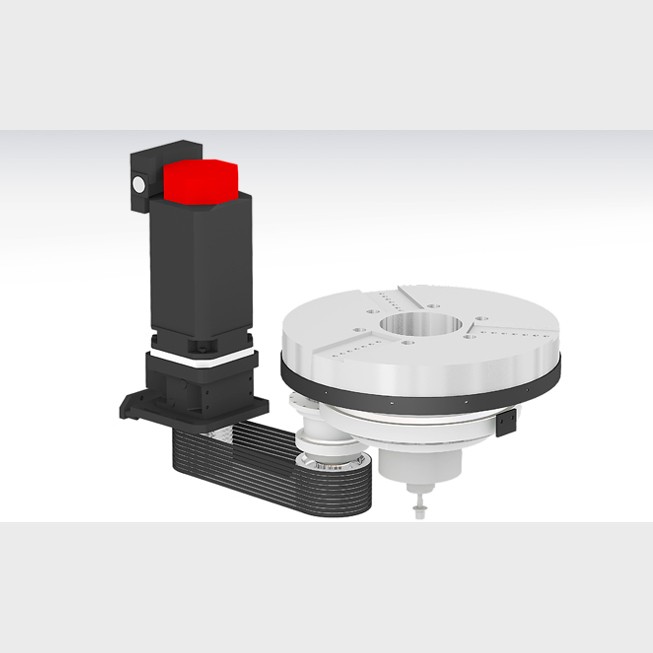

- Heavy-duty cutting ability with 2-step geared drive for tables

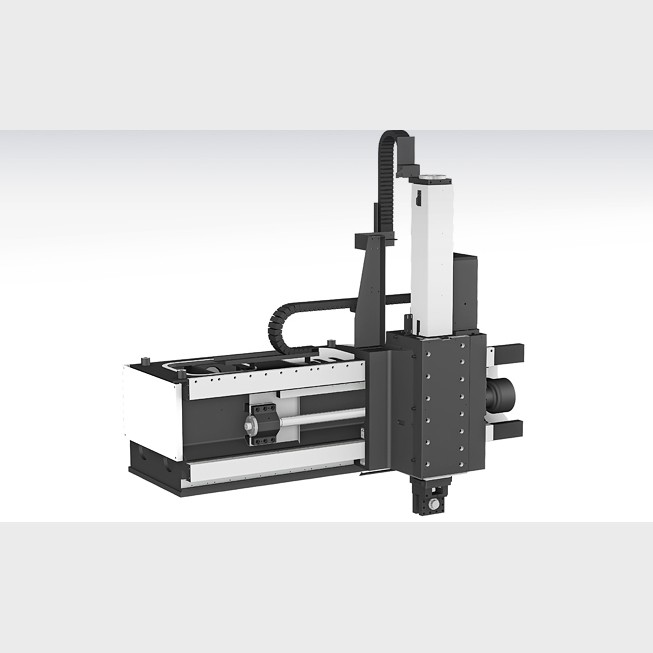

- Main spindle designed with precision angular contact bearings and box guideways in all axes for heavy duty machining applications and providing long machine life
- Highly rigid table structure for heavy load capacity
- Hydraulic cylinder type 3-step moving crossrail structure (TCV20MM)

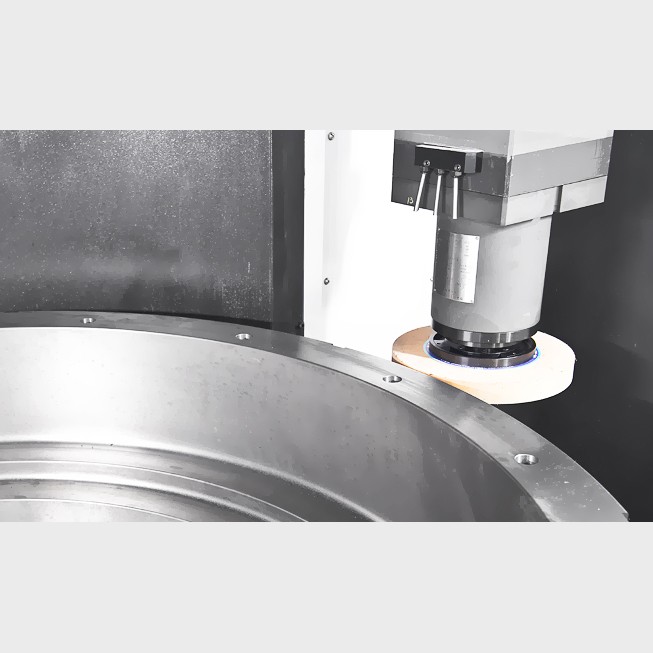

- Variety of Machining functions possible : Turning, tapping, milling, grinding etc. (TCV20MM)
- Linear scale on all axes are standard
-
Specifications
Units of Measure:
| Description | Unit | TCV20MM |
|---|---|---|
| Max Turning Dia | mm | 2,000 |
| Max Turning Length | mm | 1,700 |
| Chuck Size | inch | 63 |
| Driving Method | - | GEAR |
| Spindle RPM | r/min | 258 |
| Spindle Output | kW | 37/30 |
| Spindle Torque | N.m | 22,096/17,916 |
| Travel(X/Z) | mm | -250 ~ +1,180/915 |
| Rapid Travel(X/Z) | m/min | 12/12 |
| Slide Type | - | BOX |
| No. of Tools | EA | 18 |
| Tool Size | mm | 32/25 |
| Milling Tool Speed | r/min | 2,400 |
| CNC | - | F32i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
