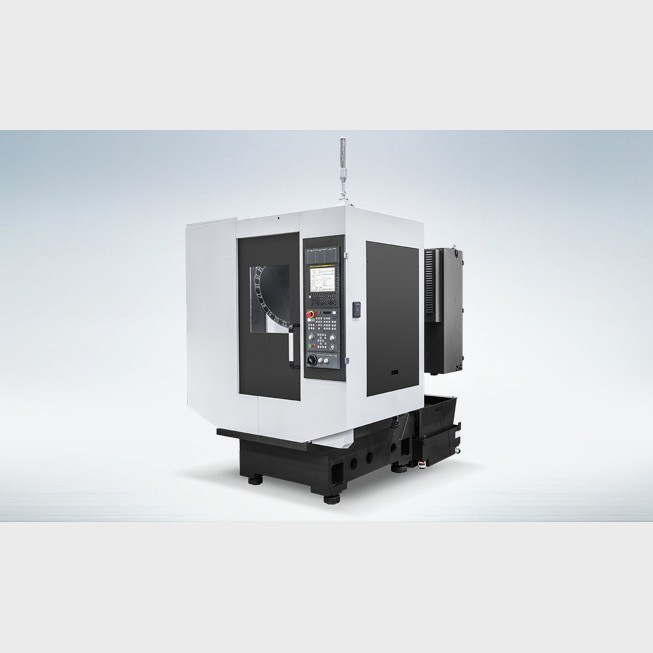

VZ40 | VZ45 Vertical Machining Tapping Center

Description

Features

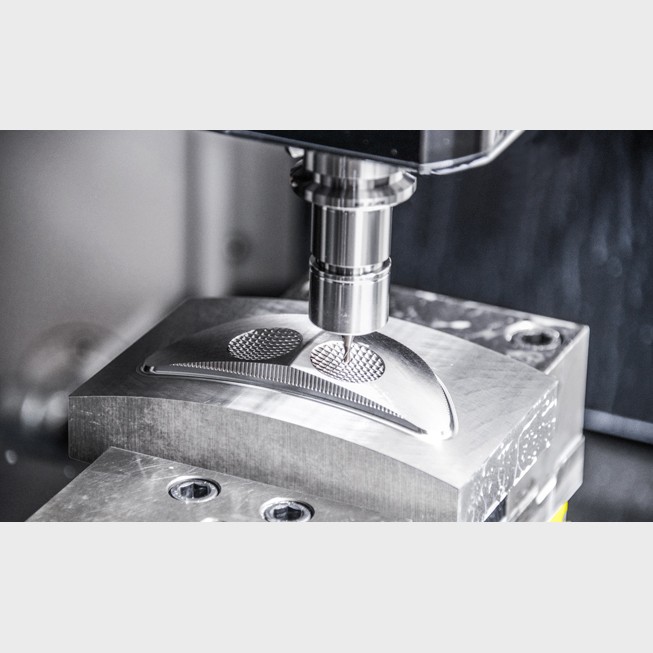

• • • Realization of high-precision machining through improvement of spindle quality
    • Max. 24,000r/min Direct Spindle
    • High performance double seal type LM guide applied

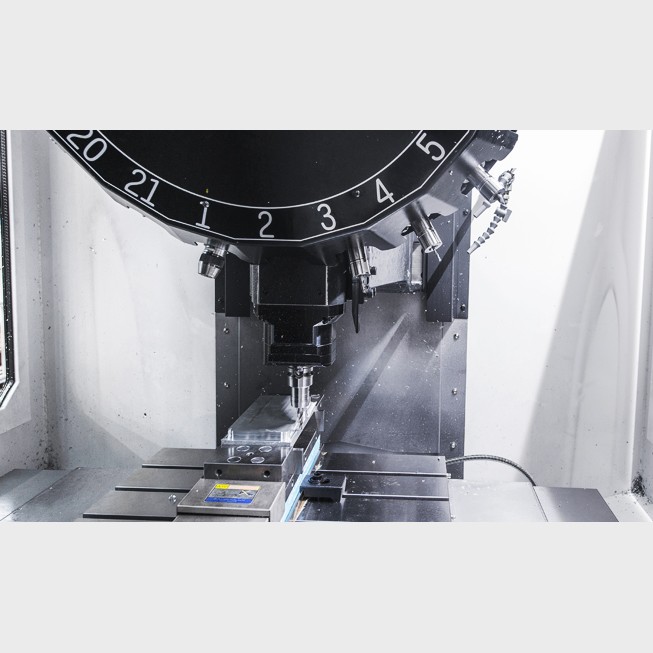

    • Best-in-class tool change time (C-C : 1.8 sec)

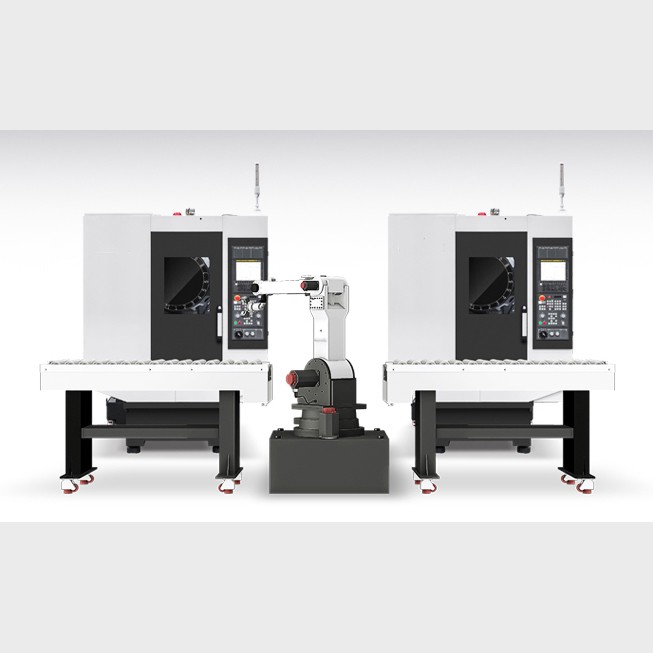

    • Twin arm type ATC for automation system (Option)
    • Shower coolant & bed coolant standard application

Specifications

Units of Measure: mm

Description	Unit	VZ40	VZ45
Table Size	mm	650×400	800×450
Max. Load Capacity	kg	300	300
Spindle Driving Method	-	Direct	Direct
Spindle Taper	-	BBT30	BBT30
Spindle RPM	r/min	12,000	12,000
Spindle Power	kW	13/3.7	13/3.7
Spindle Torque	N.m	82.7/23.5	82.7/23.5
Travel(X/Y/Z)	mm	550/400/300	700/450/300
Rapid Feed Rate(X/Y/Z)	m/min	56/56/56	56/56/56
Slide Type	-	LM	LM
No. of Tools	EA	21	21
Tool Change Time (Chip To Chip)	sec	1.8	1.8
CNC	-	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
