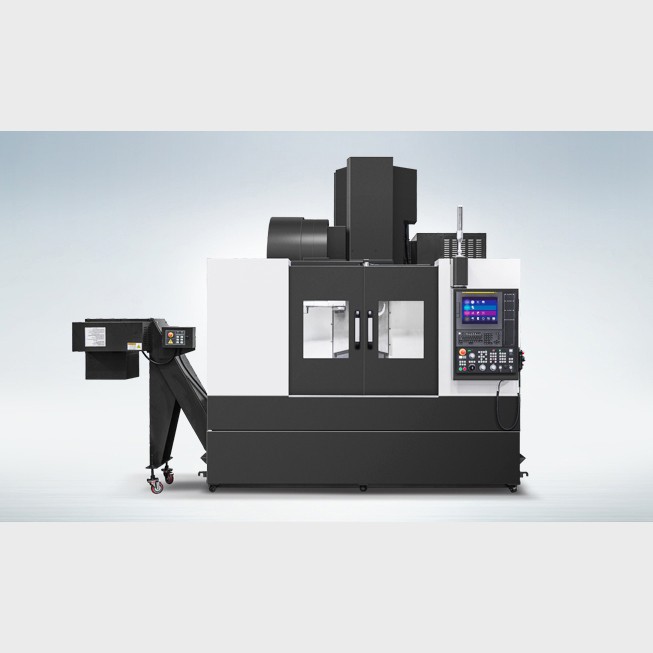

FM35 5-axis Vertical Machining Center

Product Item：FM35

Table Size: 350mm

Travel(X/Y/Z): 600/655/500mm

Spindle Taper: BBT40

No. of Tools: 30EA

Description

Features

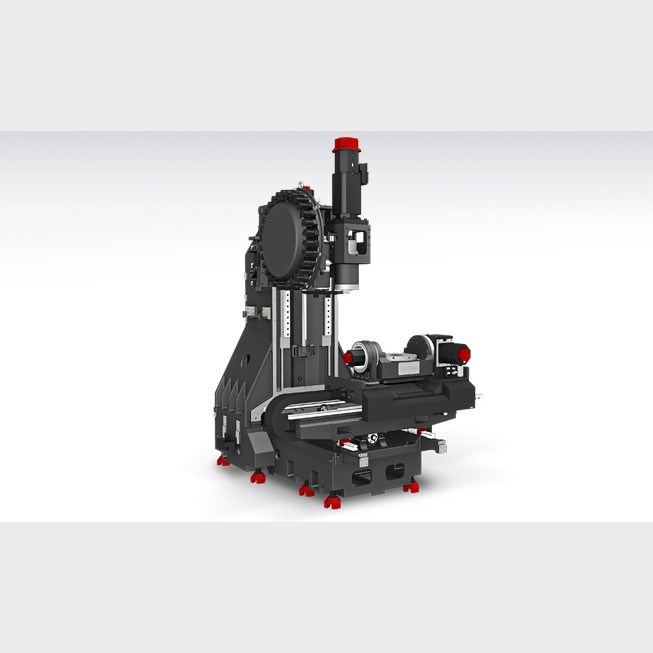

- - A/C axis high rigidity roller gear cam drive method applied
  - Vastly superior in power delivery efficiency and strength compared to worm gear of other companies
  - Rapid traverse rate of A axis 30rpm and C axis 40rpm
  - High-speed 12,000rpm spindle (Opt. 15,000/20,000rpm)
  - High-speed tool change time (C-C) 3.4 sec
  - High-speed roller type LM guide in all axes
  - Convenient work loading through crane with top cover featuring open structure
  - Compact design suitable for installation in restricted space (6.5㎡)
  - Applying the latest controller of FANUC 0i PLUS

Specifications

Units of Measure: mm

Description	Unit	FM35
Table Size	mm	350
Max. Load Capacity	kg	250
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT40
Spindle RPM	r/min	12,000
Spindle Power	kW	18.5/11
Spindle Torque	N.m	118/52.5
Travel(X/Y/Z)	mm	600/655/500
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	30
Tool Change Time (Chip To Chip)	sec	3.4
CNC	-	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
