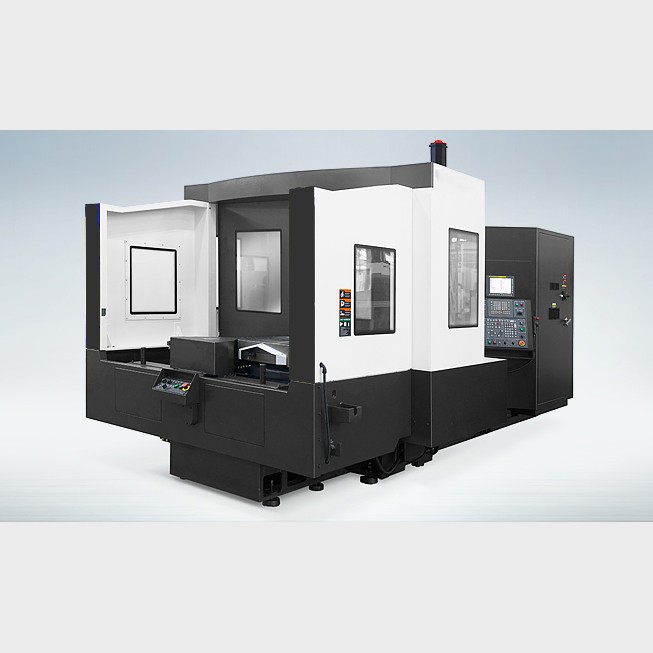

HB50 Heavy-Duty Cutting Horizontal Machining Center

HB50 Heavy-Duty Cutting Horizontal Machining Center

Product Item：HB50

Pallets Size: 500×500mm

Travel(X/Y/Z): 760/705/650mm

Spindle Taper: BT50

No. of Tools: 40EA

Description

Features

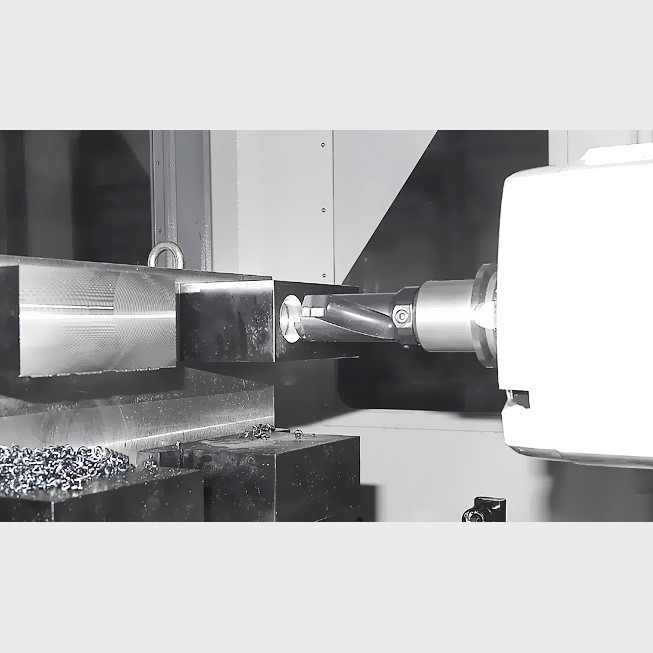

- - - 2 Step Geared Main Spindle for Heavy Duty Cutting
    - Spindle Oil Cooling System for high accuracy

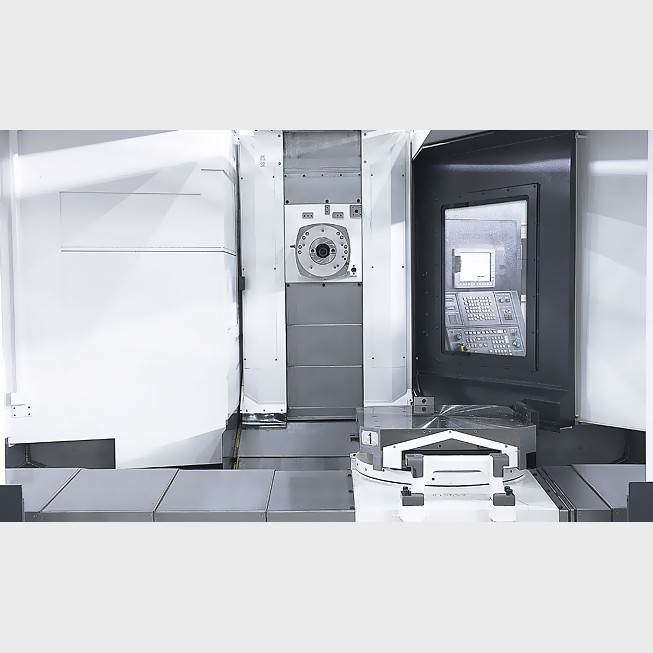

    - Shuttle Type
    - Box Guides on All Axis for Ultra-Rigidity
    - Air Semi-Rising Slide Way on Z-axis
    - Y axis Box Guideways with 8 face contact for heavy machining capability
    - Specially Designed Column which Minimizes Thermal Displacement

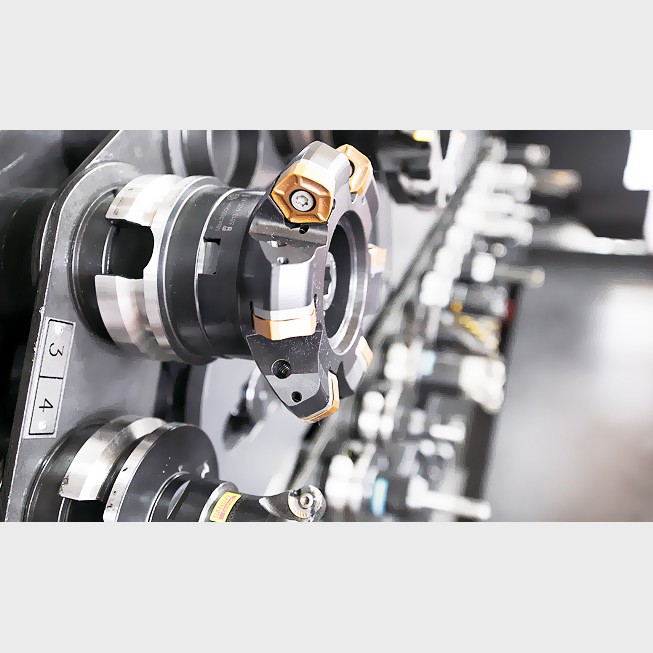

    - Tool Magazine capacity of up to 120 Tools (Optional)

Specifications

Units of Measure: mm

Description	Unit	HB50
Pallets Size	mm	500×500
Max. Load Capacity	kgf	2 - 800
Spindle Driving Method	-	GEAR(2STEP)
Spindle Taper	-	BT50
Spindle RPM	r/min	4,500
Spindle Power	kW	18.5/15
Spindle Torque	N.m	901/730
Travel(X/Y/Z)	mm	760/705/650
Rapid Feed Rate(X/Y/Z)	m/min	20/20/20
Slide Type	-	BOX
No. of Tools	EA	40
Tool Change Time (Chip To Chip)	sec	11
No. of Pallets	EA	2
APC Type	-	SHUTTLE
Pallet Change Time	sec	26
CNC	-	F31i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
