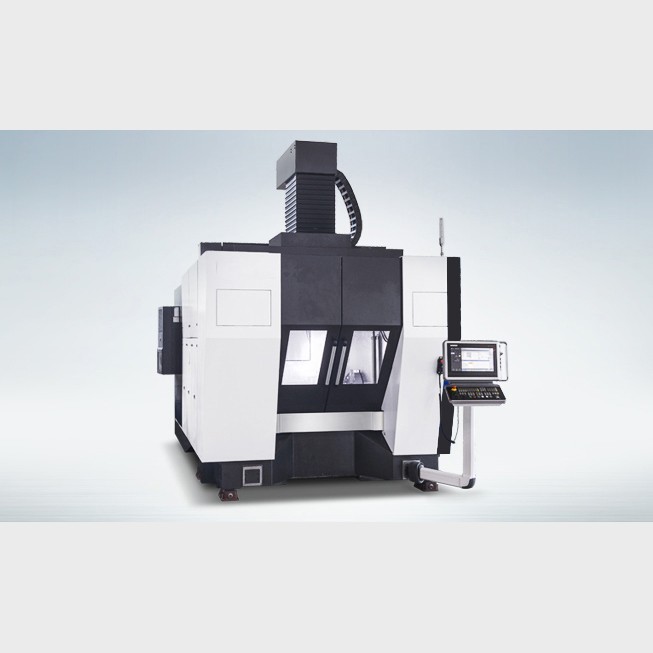

FM85 5-axis Vertical Machining Center

Product Item：FM85

Table Size: 850×400mm

Travel(X/Y/Z): 850/920/600mm

Spindle Taper: HSK-A63

No. of Tools: 34EA

Description

Features

- High-speed & High-precision 5-Axis Machining Center for medium- and large-sized product.
- One piece column-bed structure through optimal structural analysis – Rigidity has improved by 130%
- High quality machining by design methodology that minimize vibration and thermal displacement during travel
- Linear and rotary scale are equipped as standard for the high quality of machining

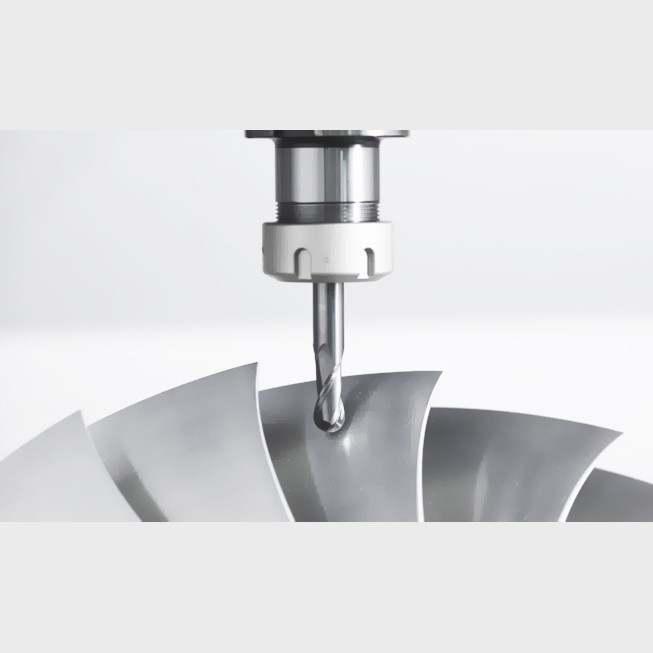

- Built-in spindle has applied for high-speed and -accuracy – Spindle displacement sensor applied as a standard
- The DDM rotary table provides simultaneous 5-axis motion which allows for the machining of complex prismatic parts.

Specifications

Units of Measure: mm

Description	Unit	FM85
Table Size	mm	850×400
Max. Load Capacity	kg	1,000
Spindle Driving Method	-	Built in
Spindle Taper	-	HSK-A63
Spindle RPM	r/min	15,000
Spindle Power	kW	31/25
Spindle Torque	N.m	153/123
Travel(X/Y/Z)	mm	850/920/600
Rapid Feed Rate(X/Y/Z)	m/min	45/45/45
Slide Type	-	ROLLER
No. of Tools	EA	34
Tool Change Time (Chip To Chip)	sec	6.8
CNC	-	iTROL

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
