TC26 TC26L TC26M TC26LM Turning Centers Compact

TC26 TC26L TC26M TC26LM Turning Centers Compact

Product Item：TC26 TC26L TC26M TC26LM

Max Turning Dia: 460mm/380mm

No. of Tools:10ea

Chuck Size: 10''

Spindle RPM:3,500r/min

Description

Features

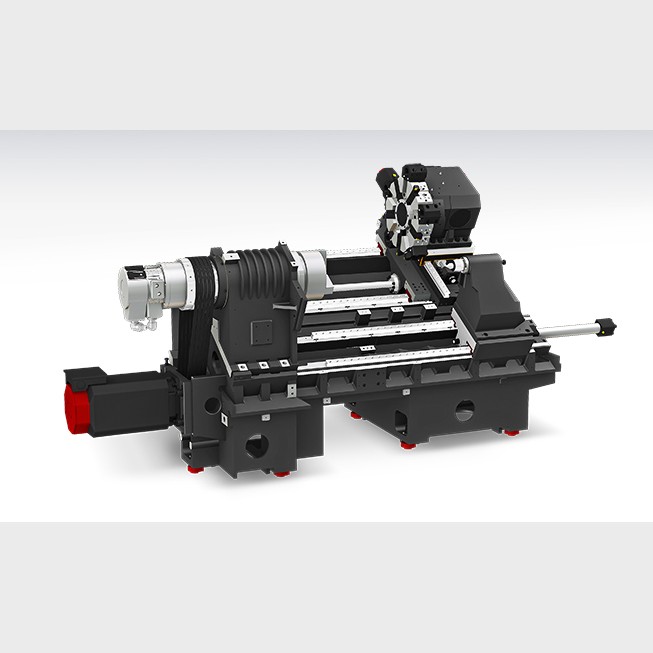

30° slanted one-piece bed structure with high rigidity
Enable long work piece machining through long bed line up application
Ensured high-rigidity applying Roller guideway on all axes (X/Z-axis: 30/30 m/min)

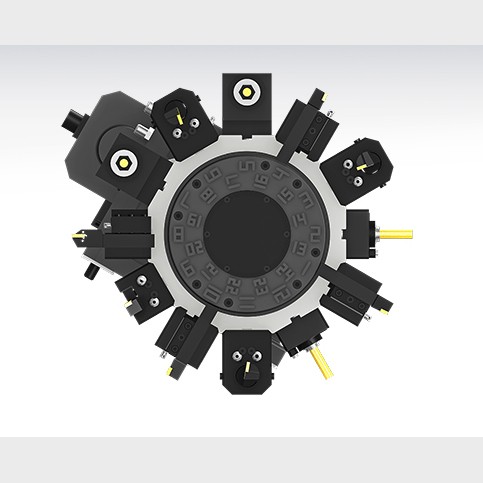

High-rigidity and high-speed servo turret (Expanded disk width)
Improved user convenience by applying the latest controller of FANUC
Ergonomic design for convenient access to chuck and tool

Specifications

Units of Measure: mm

Description	Unit	TC26	TC26L	TC26M	TC26LM
Max Turning Dia	mm	460	460	380	380
Max Turning Length	mm	671	1,091	630	1,050
Chuck Size	inch	10″	10″	10″	10″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	3,500	3,500	3,500	3,500
Spindle Output	kW	18.5/15	18.5/15	18.5/15	18.5/15
Spindle Torque	N.m	470.9/286.4	470.9/286.4	470.9/286.4	470.9/286.4
Travel(X/Z)	mm	265/680	265/1,100	255/680	255/1,100
Rapid Travel(X/Z)	m/min	30/30	30/30	30/30	30/30
Slide Type	-	LM	LM	LM	LM
No. of Tools	EA	10	10	12	12
Tool Size	mm	25/50	25/50	25/40	25/40
Milling Tool Speed	r/min	-	-	6,000	6,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
