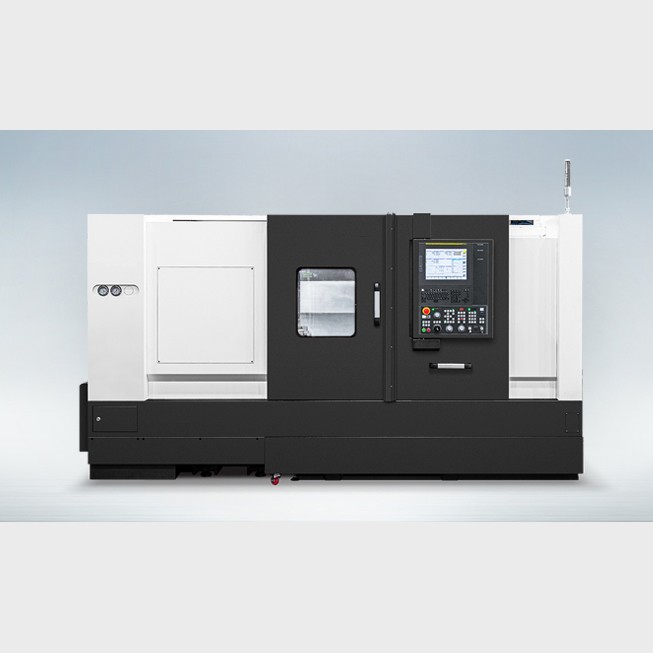

TC40 | TC40M | TC40C | TC40MC Turning Centers High Performance

Description

Features

• • • • Spindle Ideal for Heavy Cutting
      • 40% Improvement in torque compared to the previous model
      • Improvement in machining performance with application of Bzi sensor as standard

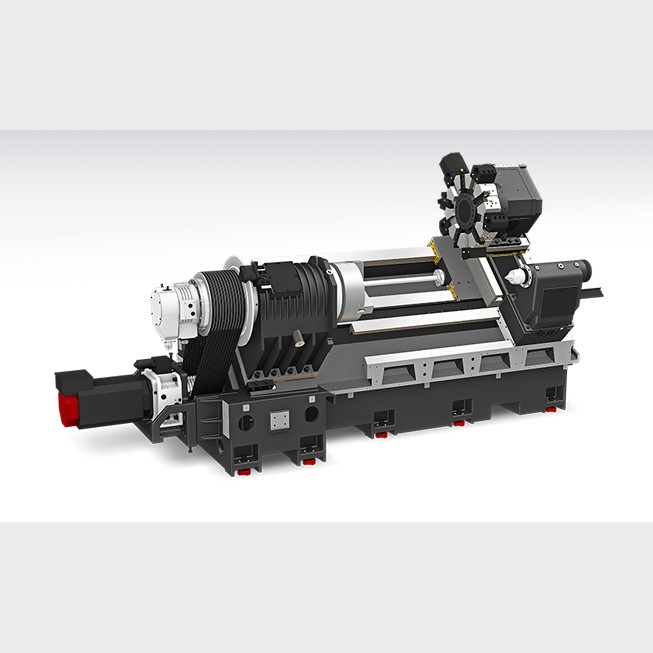

      • Rigidity secured through box guideways
      • Increased contact area between the saddle and cross-slide
      • Increased swing for machining large workpieces

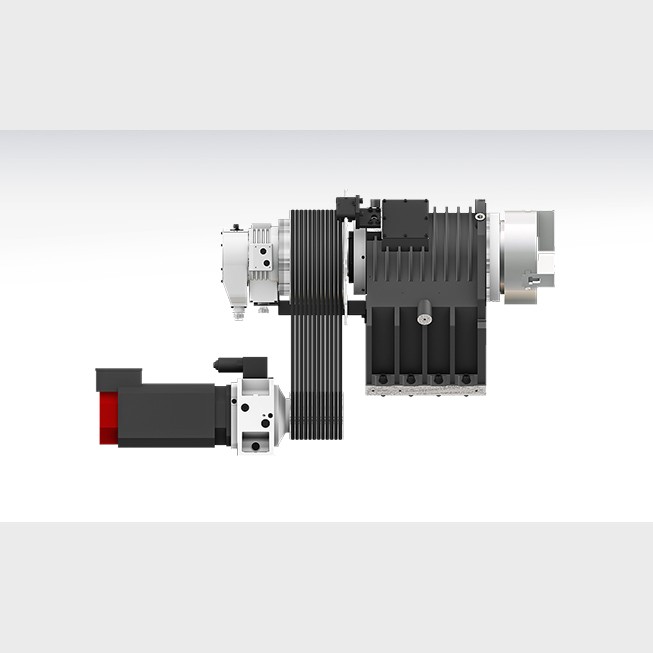

      • Optional high performance geared spindle for TC40/L/M/LM (Max 2,000rpm/37kW/3,378N.m)

Specifications

Units of Measure: mm

Description	Unit	TC40	TC40M	TC40C	TC40MC
Max Turning Dia	mm	570	570	570	570
Max Turning Length	mm	1043	958	1025	940
Chuck Size	inch	15″	15″	21″	21″
Driving Method	-	GEAR	Belt	GEAR	GEAR
Spindle RPM	r/min	2,000	2,000	1,500	1,500
Spindle Output	kW	35	30	37	37
Spindle Torque	N.m	2,450	1,611	3,378	1,812
Travel(X/Z)	mm	330/1,105	330/1,105	330/1,105	330/1,105
Rapid Travel(X/Z)	m/min	16/20	16/20	16/20	16/20
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	10	12	10	10
Tool Size	mm	32/60	32/60	32/60	32/60
Milling Tool Speed	r/min	-	4,000	-	4,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
