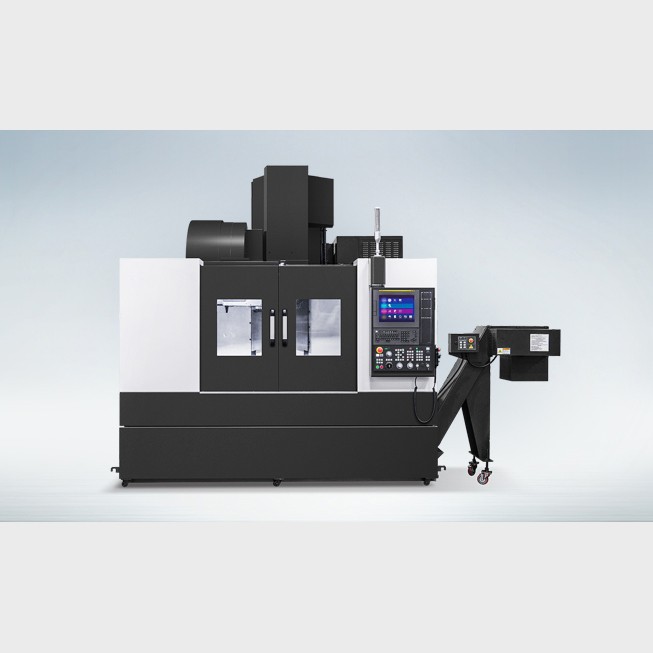

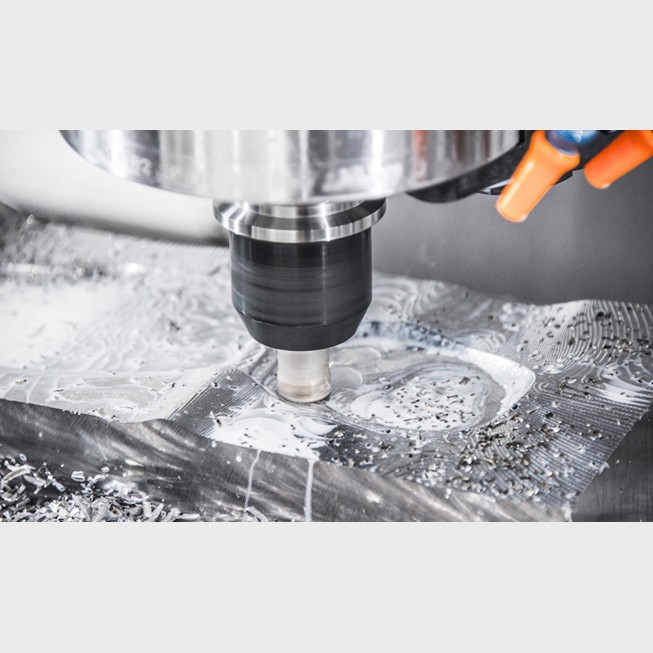

KV56MAX Series High Speed Machining Center

KV56MAX Series High Speed Machining Center

Product Item：KV56MAX Series

Table Size: 1250×560mm

Travel(X/Y/Z): 1100/560/520mm

Spindle Taper: BBT40/HSK-A63

No. of Tools: 30EA

Description

Features

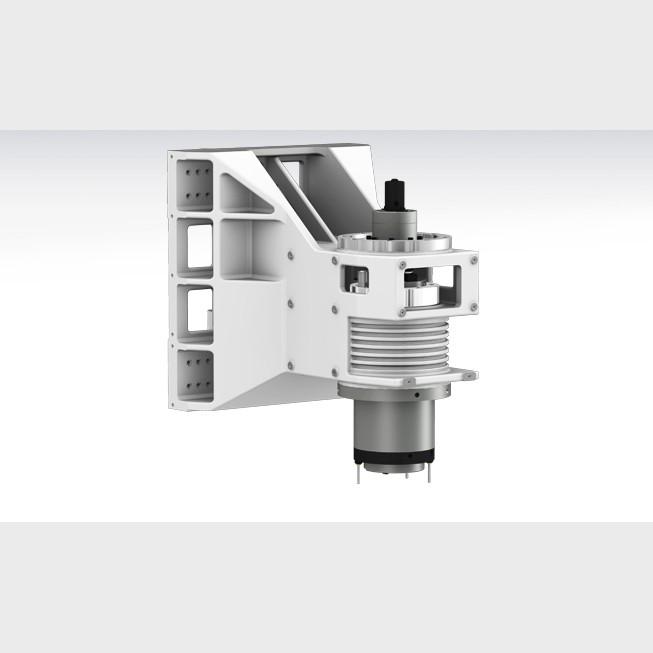

- High-precision machining by improved spindle quality
- High-speed roller type LM guide in all axes
- Enhanced chip disposal capabilities by applying the upper-type conveyor

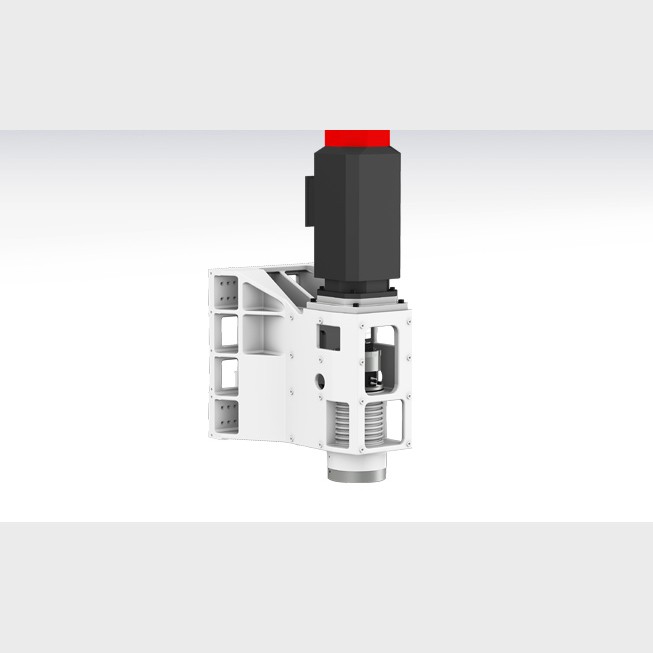

- Various motors and columns provided for customized machining
- Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV56MAX(8k)	KV56MAX(8k-OPT1)	KV56MAX(10k-OPT2)	KV56MAX(12k-OPT3)
Table Size	mm	1250×560	1250×560	1250×560	1250×560
Max. Load Capacity	kg	1,000	1,000	1,000	1,000
Spindle Driving Method	-	Direct	Direct	Direct	Direct
Spindle Taper	-	BBT40	BBT40	BBT40	HSK-A63
Spindle RPM	r/min	8,000	8,000	10,000	12,000
Spindle Power	kW	18.5/11	15/11	18.5/11	18.5/11
Spindle Torque	N.m	118/52.5	286/143	118/52.5	118/52.5
Travel(X/Y/Z)	mm	1100/560/520	1100/560/520	1100/560/520	1100/560/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30	36/36/30	36/36/30
Slide Type	-	LM	LM	LM	LM
No. of Tools	EA	30	30	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2	3.2	3.2
CNC	-	H/W FANUC i	FANUC 31i-B	FANUC 31i-B	FANUC 31i-B

Description	Unit	KV56MAX(15k-OPT1)	KV56MAX(20k-OPT2)
Table Size	mm	1250×560	1250×560
Max. Load Capacity	kg	1,000	1,000
Spindle Driving Method	-	Direct	Built in
Spindle Taper	-	HSK-A63	HSK-A63
Spindle RPM	r/min	15,000	20,000
Spindle Power	kW	18.5/11	22/18.5
Spindle Torque	N.m	118/52.5	98/80
Travel(X/Y/Z)	mm	1100/560/520	1100/560/520
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30	36/36/30
Slide Type	-	LM	LM
No. of Tools	EA	30	30
Tool Change Time (Chip To Chip)	sec	3.2	3.2
CNC	-	FANUC 31i-B	FANUC 31i-B

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
