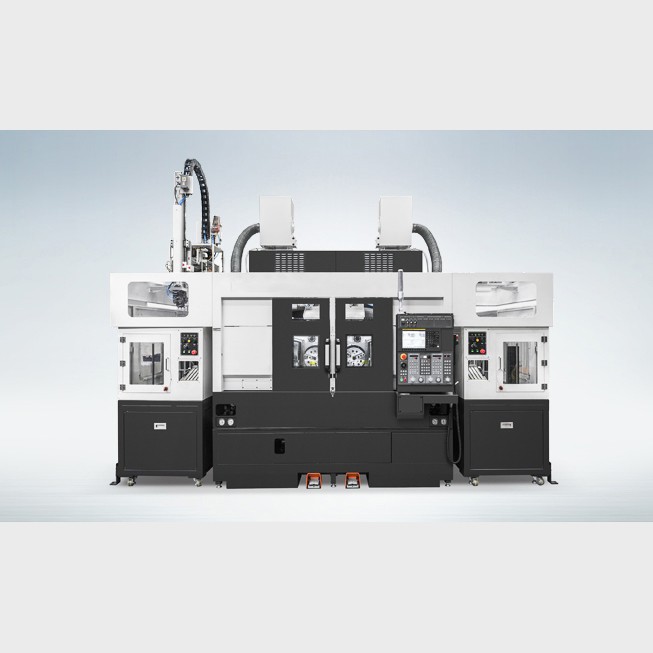

TCF26 Series Front Loading Turning Center

Description

Features

• • • • Increased rigidity by improving Z-axis structure
      • Selection between roller LM guide and box guide way

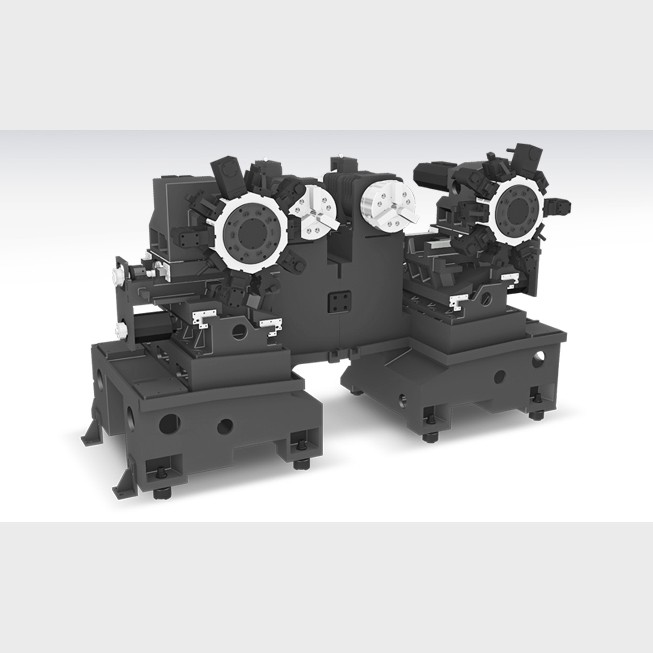

      • Stable unit composition with minimized thermal deformation

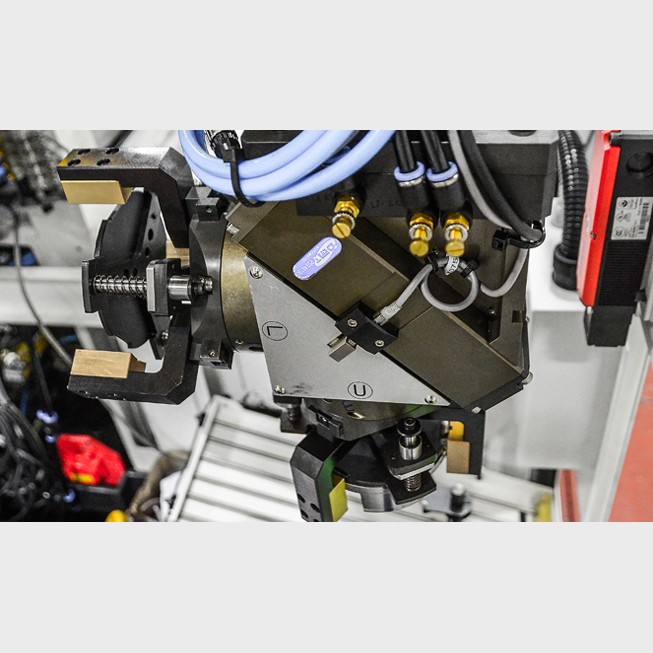

      • Various types of gantry loader ensure effective & flexible automation
      • A pleasant working environment by improving chip disposal ability
      • Enhanced convenience by applying Fanuc’s latest controller

Specifications

Units of Measure: mm

Description	Unit	TCF26 MAX	TCF26Q MAX	TCF26M MAX	TCF26MQ MAX
Max Turning Dia	mm	360	360	360	360
Max Turning Length	mm	200	200	200	200
Chuck Size	inch	10″	10″	10″	10″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	3,500	3,500	3,500	3,500
Spindle Output	kW	15/11	15/11	15/11	15/11
Spindle Torque	N.m	254/140	254/140	254/140	254/140
Travel(X/Z)	mm	190/200	190/200	190/200	190/200
Rapid Travel(X/Z)	m/min	24/24	24/36	24/24	24/36
Slide Type	-	BOX	LM	BOX	LM
No. of Tools	EA	2 x 10	2 x 10	2 x 10	2 x 10
Tool Size	mm	25/40	25/40	25/40	25/40
Milling Tool Speed	r/min	-	-	5000	5000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
