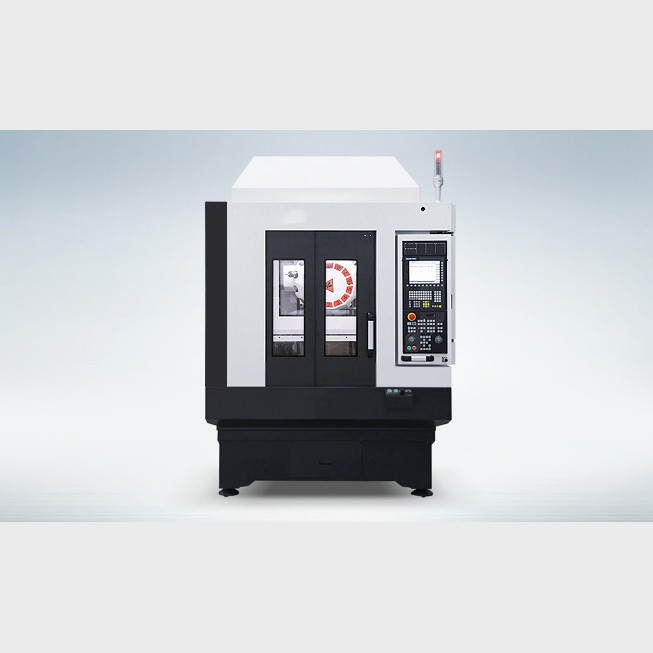

VZ40TD Vertical Machining Tapping Center

VZ40TD Vertical Machining Tapping Center

Product Item：VZ40TD

Table Size: 2 - 650×400mm

Spindle RPM: 12,000r/min

Travel(X/Y/Z): 520/400/330mm

No. of Tools:14EA

Description

Features

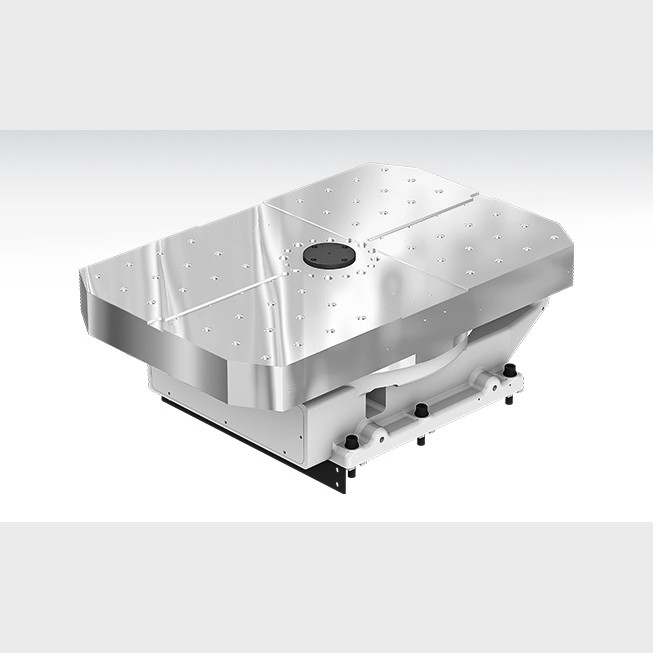

- Shortens setting time for materials with a dual table system
- Direct-connection, high-speed spindle system design (15,000rpm)

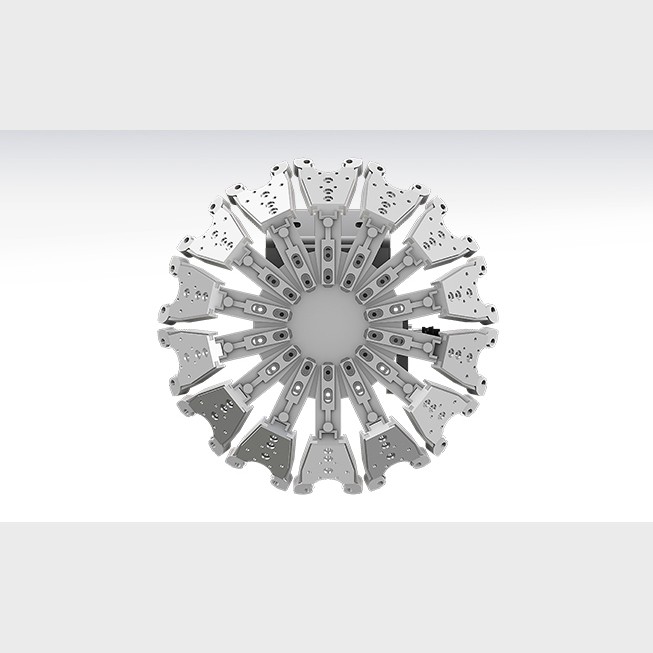

- Servo motor-driven ATC (C-C time: 1.6 sec.)
- Shortens non-cutting time with rapid feed (56m/min.)

Specifications

Units of Measure: mm

Description	Unit	VZ40TD
Table Size	mm	2 - 650×400
Max. Load Capacity	kg	2 - 250
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT30
Spindle RPM	r/min	12,000
Spindle Power	kW	14.1/4.1
Spindle Torque	N.m	45/21
Travel(X/Y/Z)	mm	520/400/330
Rapid Feed Rate(X/Y/Z)	m/min	56/56/56
Slide Type	-	LM
No. of Tools	EA	14
Tool Change Time (Chip To Chip)	sec	1.6
CNC	-	iTROL

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
