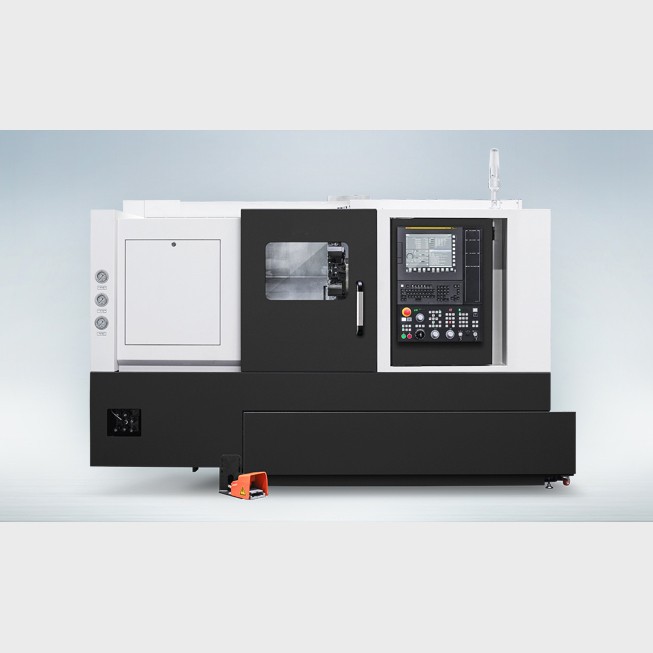

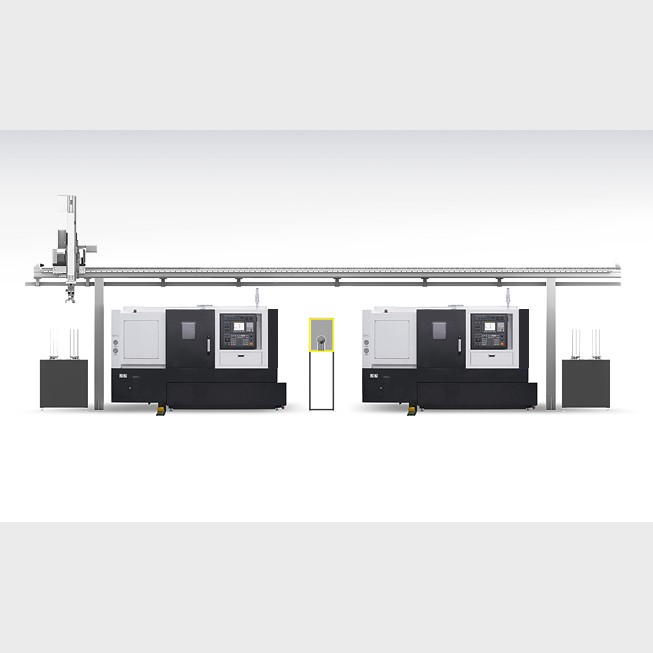

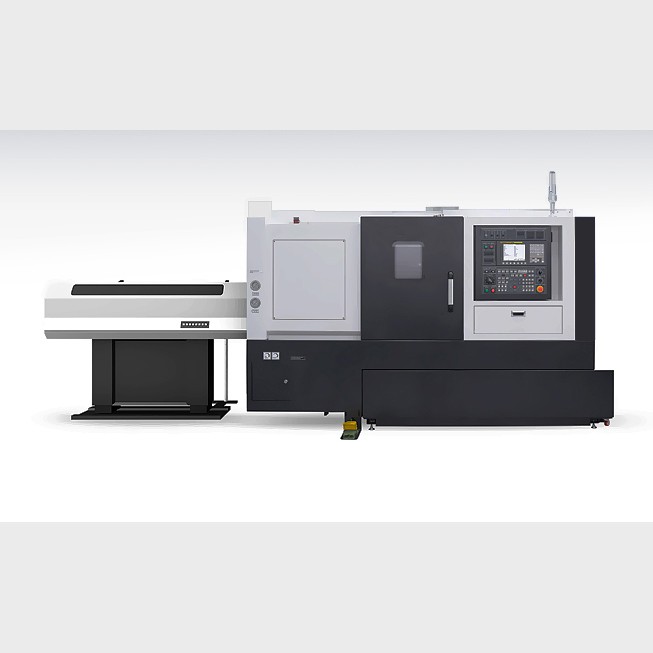

TCB22 | TCB22C | TCB22M | TCB22MC Turning Centers High Performance

Description

Features

• • • • • 45° slanted one-piece rigid bed structure
        • Minimal thermal distortion
        • User-friendly structure for high productivity
        • Best in class rapid traverse rate : 30m/min (Z-axis)

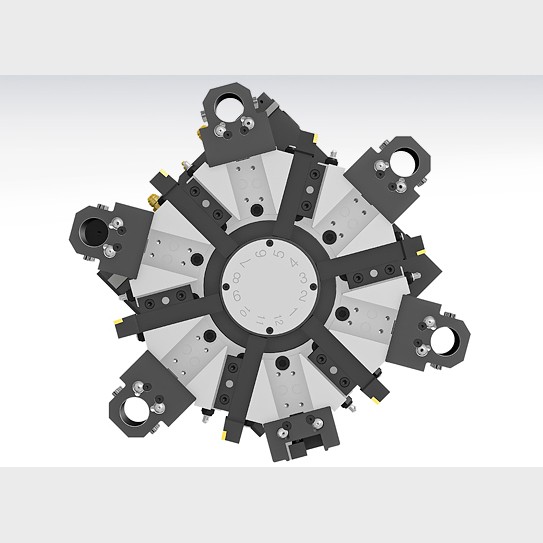

        • Reliable, high speed servo turret: 0.12sec/step
        • Box guide ways for heavy-duty cutting
        • Compact design, able to install within a limited space.
        • Ergonomic design for convenient access to chuck and tool



Specifications

Units of Measure: mm

Description	Unit	TCB22	TCB22C	TCB22M	TCB22MC
Max Turning Dia	mm	380	380	300	300
Max Turning Length	mm	565	550	467	452
Chuck Size	inch	8″	10″	8″	10″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	4,500	3,500	4,500	3,500
Spindle Output	kW	18.5/15	18.5/15	18.5/15	18.5/15
Spindle Torque	N.m	206/125.3	403.6/245.4	206/125.3	403.6/245.4
Travel(X/Z)	mm	215/580	215/580	215/482	215/482
Rapid Travel(X/Z)	m/min	24/30	24/30	24/30	24/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	25/40	25/40
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
