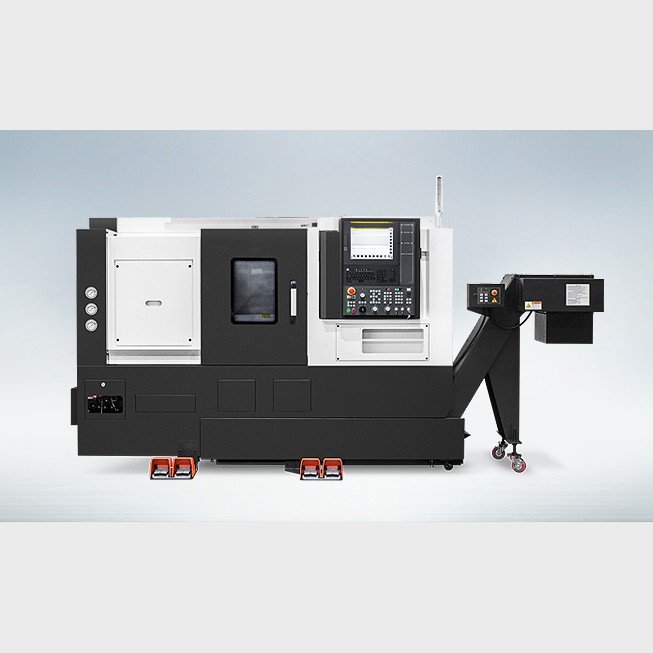

Description
Features
-
-
-
-
- 30° slanted one-piece bed structure with high rigidity
- Stabilized unit structure to minimize thermal displacement
- Integrated processing through synchronized control of Main/Sub spindle

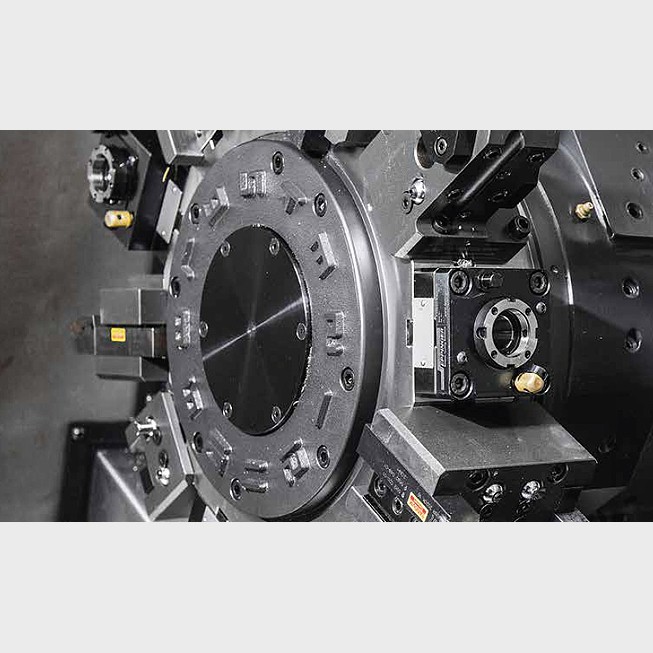

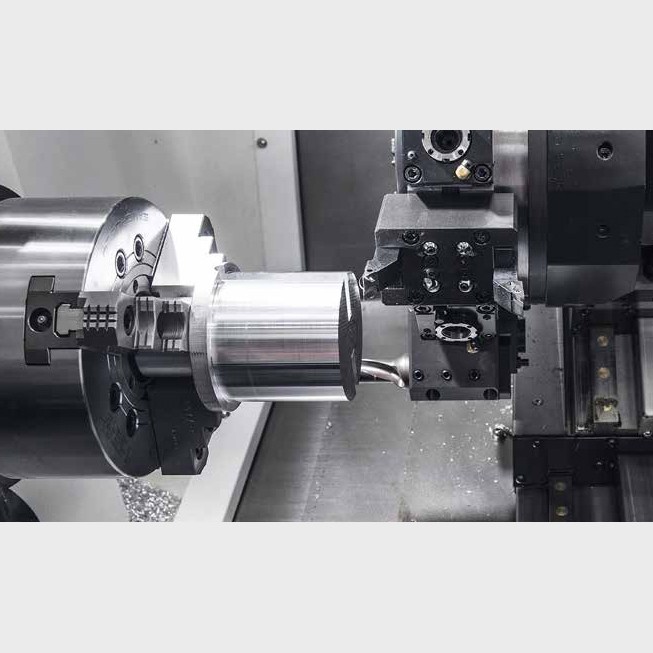

- Multi-tasking operation with wedge type Y-axis BMT45P turret

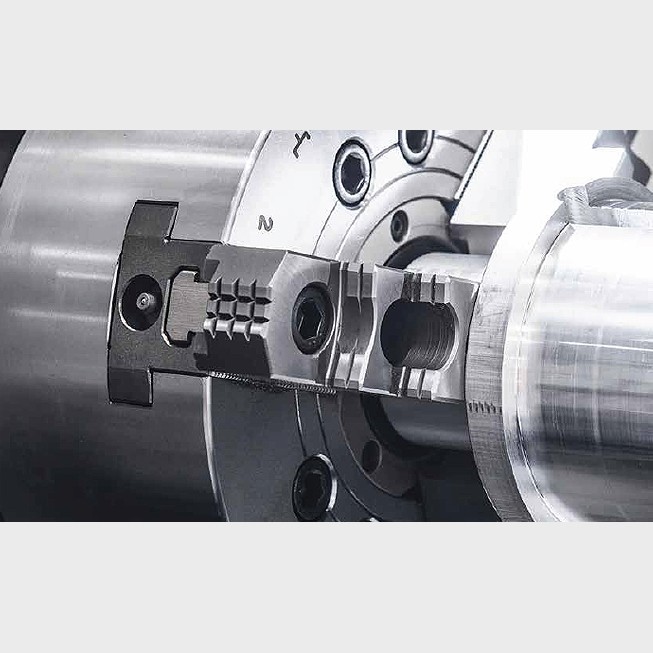

- Ergonomic design for convenient access to chuck and tool
- Latest FANUC 0i PLUS Controller (15” touch screen)
-
-
-
Specifications
Units of Measure:
Description
Unit
TC22YA
TC22LYA
TC22LSYA
Max Turning Dia
mm
300
300
300
Max Turning Length
mm
309
529
529
Chuck Size
inch
6″
6″
Main 6″
Sub 5″
Driving Method
-
Belt
Belt
Belt
Spindle RPM
r/min
6,000
6,000
6,000
Spindle Output
kW
15/11
15/11
15/11
Spindle Torque
N.m
127/70
127/70
127/70
Travel(X/Y/Z/ZB)
mm
210/110/340/-
210/110/560/-
210/110/560/599.3
Rapid Travel(X/Y/Z/ZB)
m/min
30/10/36/-
30/10/36/-
30/10/36/15
Slide Type
-
LM
LM
LM
No. of Tools
EA
12
12
12
Tool Size
mm
20/32
20/32
20/32
Milling Tool Speed
r/min
6,000
6,000
6,000
CNC
-
F0i PLUS
F0i PLUS
F0i PLUS
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
