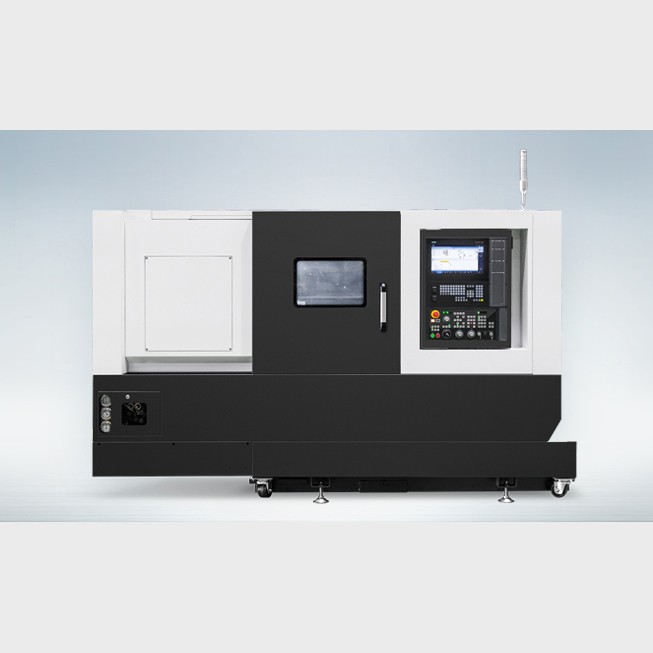

TCB22Y | TCB26Y | TCB31YA | TCB31Y Multi-Axis Turning Center

Description

Features

• • Box guideways for enhancement of cutting capability

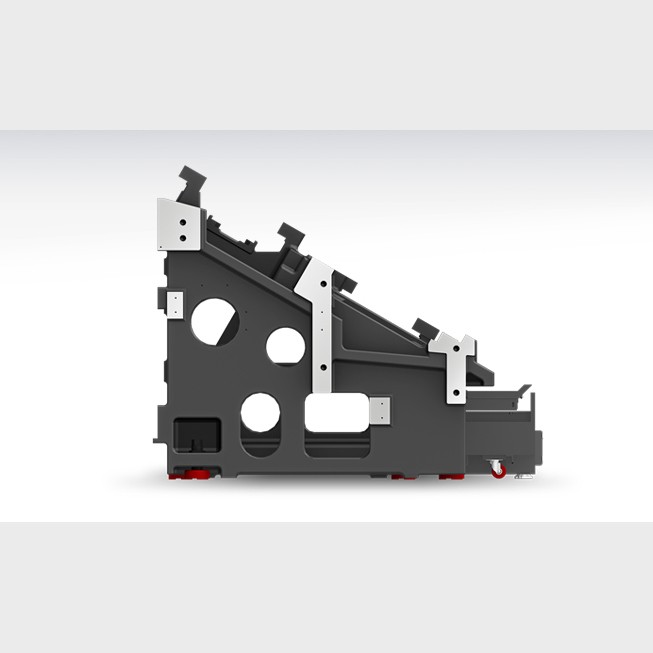

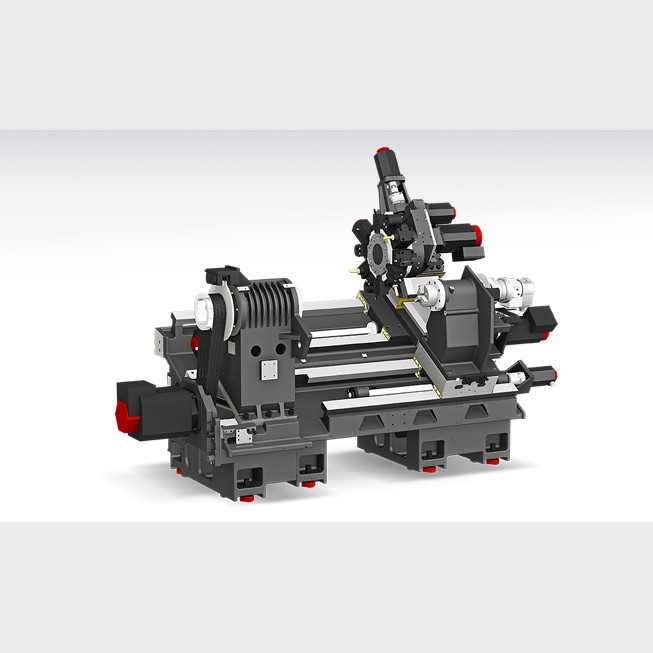

  • One-piece and 30° degree slanted bed assures high-rigidity in structure
  • Minimized thermal displacement through stabilized machine component

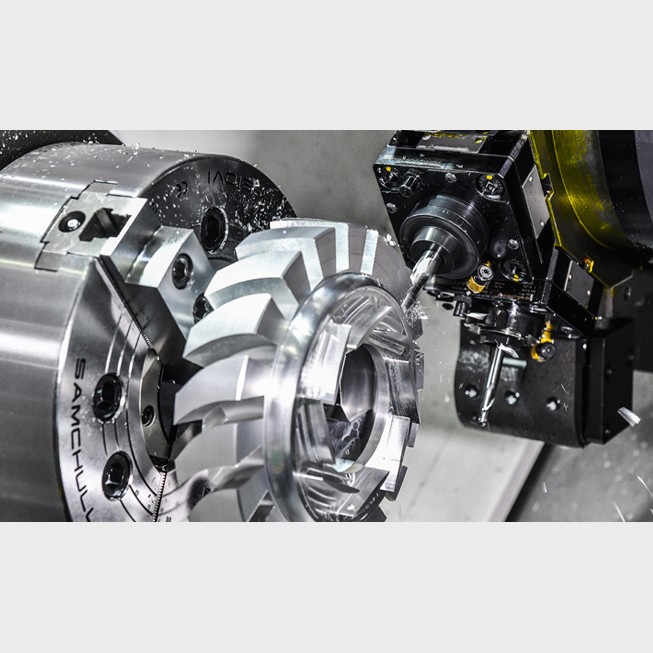

  • Complex machining is possible with BMT55P turret transferred by wedge type Y-axis

Specifications

Units of Measure: mm

Description	Unit	TCB22Y	TCB26Y	TCB31YA	TCB31Y
Max Turning Dia	mm	300	300	420	420
Max Turning Length	mm	610	610	760	760
Chuck Size	inch	8″	10″	10″	12″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	4,000	3,500	3,500	2,800
Spindle Output	kW	18.5/15	18.5/15	26/18.5	26/18.5
Spindle Torque	N.m	206.2/125.4	400.7/243.7	734/522	1051/672
Travel(X/Y/Z)	mm	215/110/680	215/110/680	265/120/830	265/120/830
Rapid Travel(X/Y/Z)	m/min	24/10/30	24/10/30	24/10/30	24/10/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	25/50	25/50
Milling Tool Speed	r/min	6,000	6,000	5,000	5,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
