Description
Features
-
-
- Ultra precision Cylindrical Roller Bearing on the main spindle

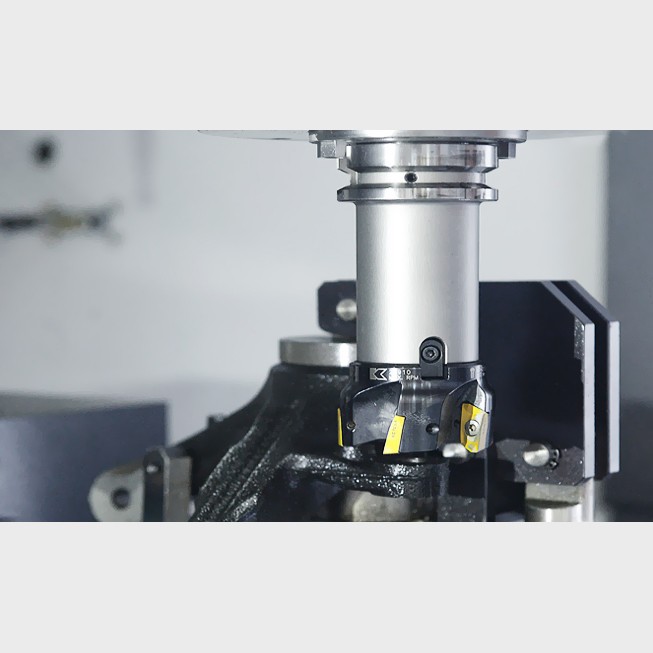

- Ultra powerful heavy duty-cutting through high-rigidity gear drive method

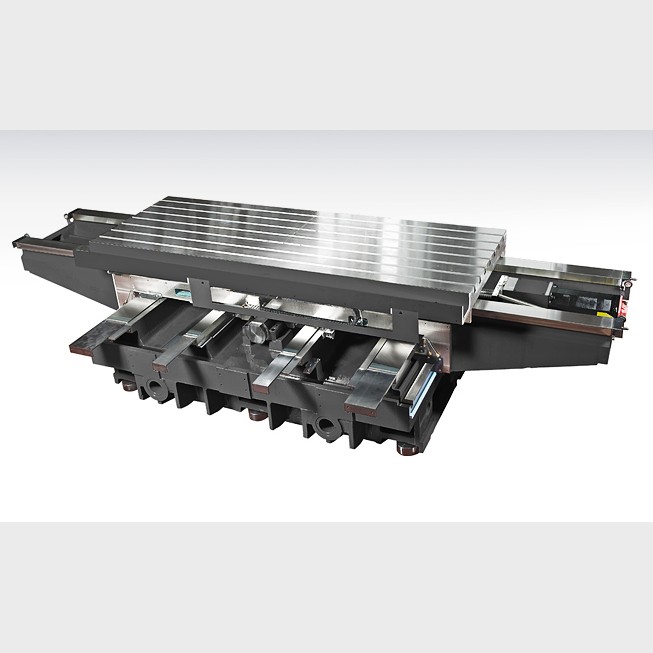

- Box Guides on all axis for superb heavy duty cutting
- 4WAY 10 faces Box Guide design (KV960B)
- Air Semi-Rising Slide Way to decrease feed load
- Latest SIEMENS 828D installation for abundant processing software
-
Specifications
Units of Measure:
| Description | Unit | KV960B |
|---|---|---|
| Table Size | mm | 2,700×950 |
| Max. Load Capacity | kg | 4,500 |
| Spindle Driving Method | - | GEAR |
| Spindle Taper | - | BBT50 |
| Spindle RPM | r/min | 8,000 |
| Spindle Power | kW | 22/18.5 |
| Spindle Torque | N.m | 776/657 |
| Travel(X/Y/Z) | mm | 2,450/960/850 |
| Rapid Feed Rate(X/Y/Z) | m/min | 16/16/20 |
| Slide Type | - | BOX |
| No. of Tools | EA | 20 |
|
Tool Change Time (Chip To Chip) |
sec | 8.5 |
| CNC | - | F31i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
