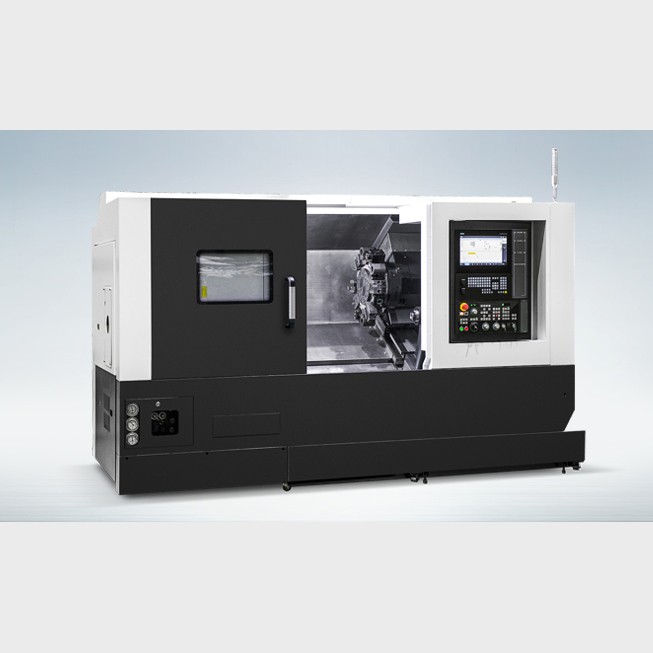

TCB22SY | TCB26SY | TCB31SYA | TCB31SY Multi-Axis Turning Center

Description

Features

• • • Integrated processing through synchronized control of Main/Sub spindle ("SY" Type)

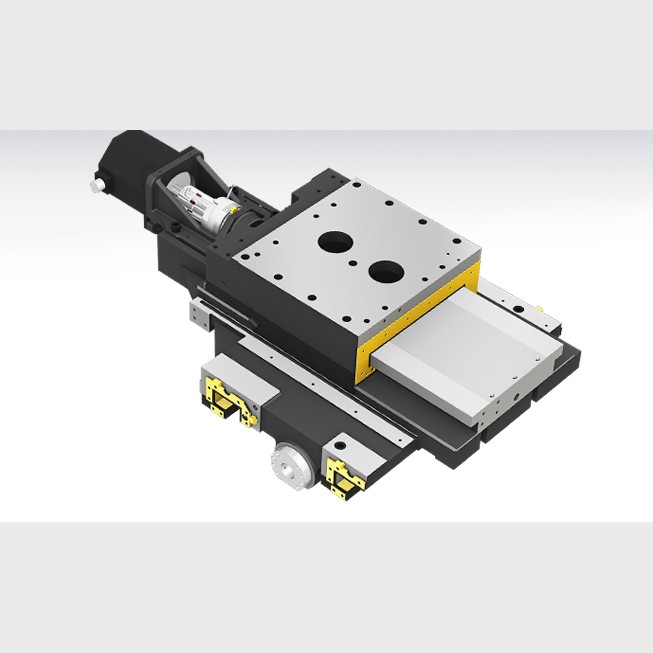

    • Box guideways for heavy duty cutting
    • 30° slanted one-piece bed structure for high rigidity
    • Stabilized Unit Structure to minimize thermal displacement

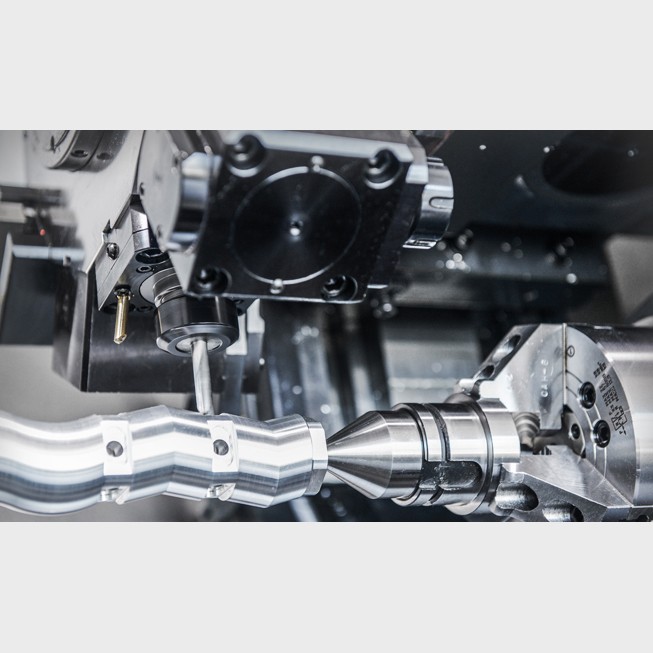

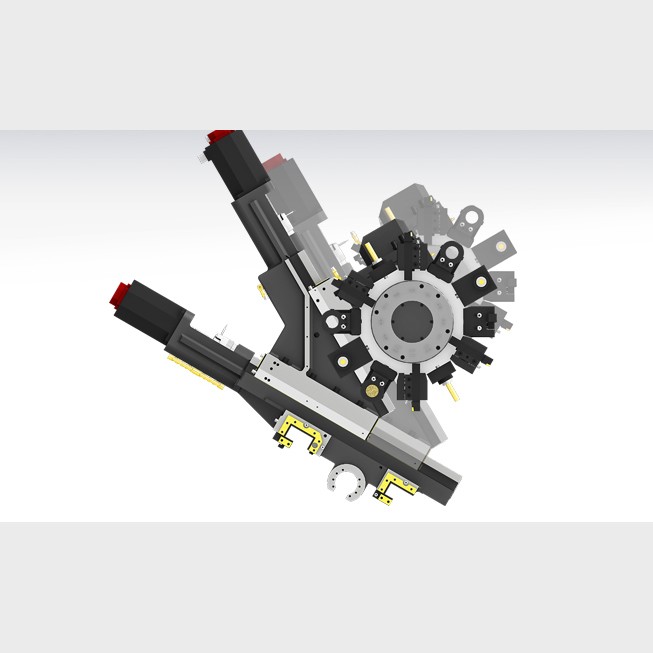

    • Multi-tasking operation with wedge type Y-axis BMT55P turret

Specifications

Units of Measure: mm

Description	Unit	TCB22SY	TCB26SY	TCB31SYA	TCB31SY
Max Turning Dia	mm	300	300	420	420
Max Turning Length	mm	610	610	760	760
Chuck Size	inch	Main 8″ Sub 5″	Main 10″ Sub 5″	Main 10″ Sub 6″	Main 12″ Sub 6″
Driving Method	-	Belt	Belt	Belt	Belt
Spindle RPM	r/min	4,000	3,500	3,500	2,800
Spindle Output	kW	18.5/15	18.5/15	26/18.5	26/18.5
Spindle Torque	N.m	206.2/125.4	400.7/243.7	734/522	1051/672
Travel(X/Y/Z/ZB)	mm	215/110/680/680	215/110/680/680	265/120/830/830	265/120/830/830
Rapid Travel(X/Y/Z/ZB)	m/min	24/10/30/24	24/10/30/24	24/10/30/30	24/10/30/30
Slide Type	-	BOX	BOX	BOX	BOX
No. of Tools	EA	12	12	12	12
Tool Size	mm	25/40	25/40	20/50	20/50
Milling Tool Speed	r/min	6,000	6,000	5,000	5,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i	H/W FANUC i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
