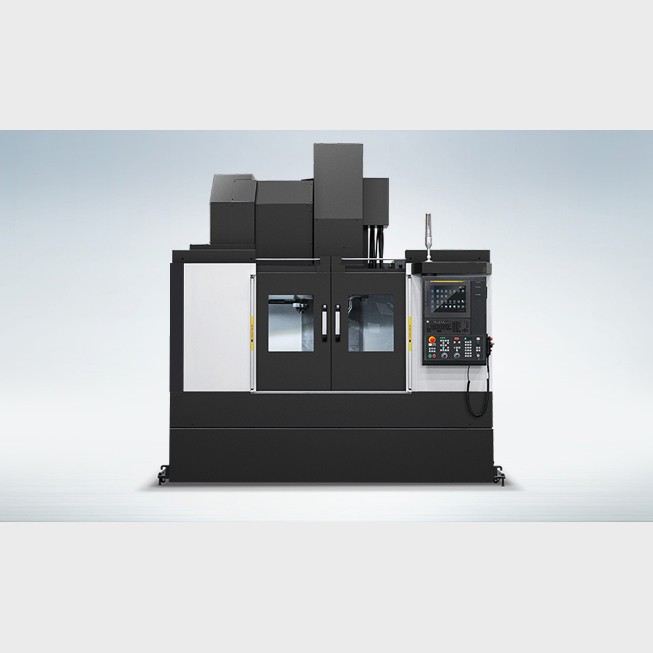

KV5/5 High Speed Machining Center

Product Item：KV5/5

Table Size: 1,300x560mm

Travel(X/Y/Z): 1050/560/510mm

Spindle Taper: BBT50

No. of Tools: 24EA

Description

Features

- - - High-precision machining by improved spindle quality
    - High-speed roller type LM guide in all axis
    - Enhanced chip processing capabilities by applying the upper-type conveyor
    - Various motors and columns provided for customized machining
    - Improved user convenience by applying the latest controller of FANUC

Specifications

Units of Measure: mm

Description	Unit	KV5/5
Table Size	mm	1,300x560
Max. Load Capacity	kg	1,000
Spindle Driving Method	-	Direct
Spindle Taper	-	BBT50
Spindle RPM	r/min	8,000
Spindle Power	kW	22/11
Spindle Torque	N.m	353.2/143
Travel(X/Y/Z)	mm	1050/560/510
Rapid Feed Rate(X/Y/Z)	m/min	36/36/30
Slide Type	-	LM
No. of Tools	EA	24
Tool Change Time (Chip To Chip)	sec	5.5

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
