Description
Features
-
-
- Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)

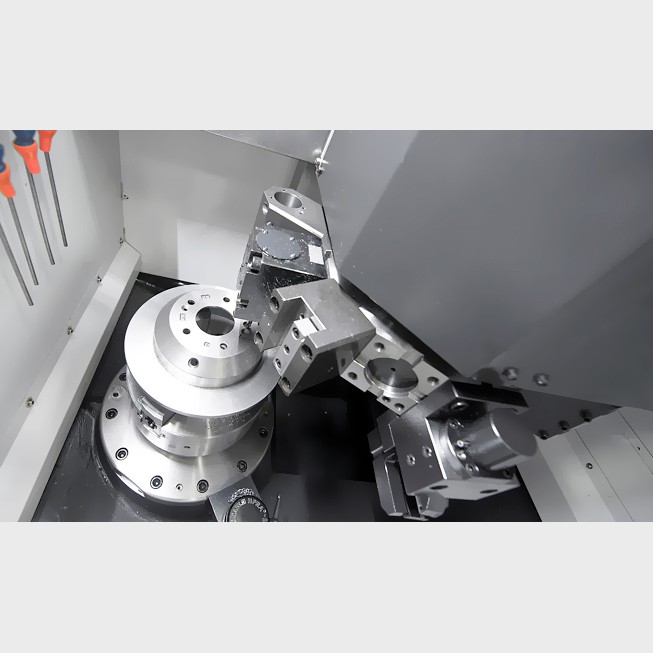

- 2-step chuck pressure mechanism adopted to minimize material deformation
- Various peripheral equipment can be used for rational machining
- All-in-one machine structure incorporating power and oil supply functions in one body
- Space design taking into account smooth ship treatment

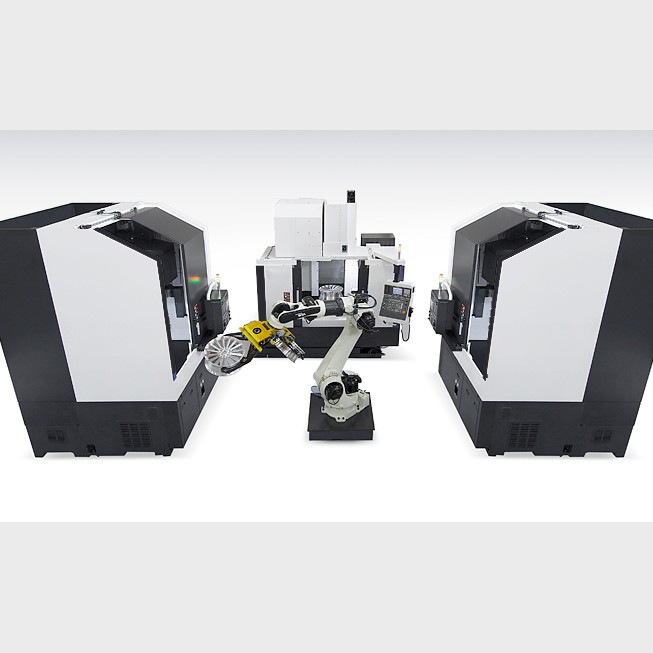

- “Right” and “Left” structure for the formation of rational automation
Specifications
Units of Measure:
| Description | Unit | TCV11R/L | TCV11RM/LM |
|---|---|---|---|
| Max Turning Dia | mm | 1160 | 1160 |
| Max Turning Length | mm | 1,000 | 1,000 |
| Chuck Size | inch | 32″ | 32″ |
| Driving Method | - | GEAR | GEAR |
| Spindle RPM | r/min | 800 | 800 |
| Spindle Output | kW | 65/45 | 65/45 |
| Spindle Torque | N.m | 7,671/5,310 | 7,671/5,310 |
| Travel(X/Z) | mm | 620/1,000 | 620/1,000 |
| Rapid Travel(X/Z) | m/min | 24/24 | 24/24 |
| Slide Type | - | BOX | BOX |

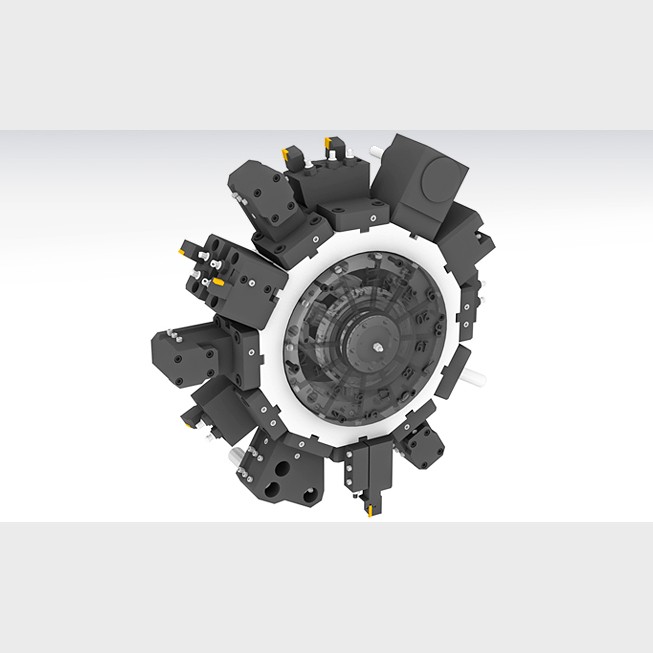

| No. of Tools | EA | 12 | 12 |
| Tool Size | mm | 32/80 | 32/80 |
| Milling Tool Speed | r/min | - | 3,000 |
| CNC | - | F32i | F32i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
