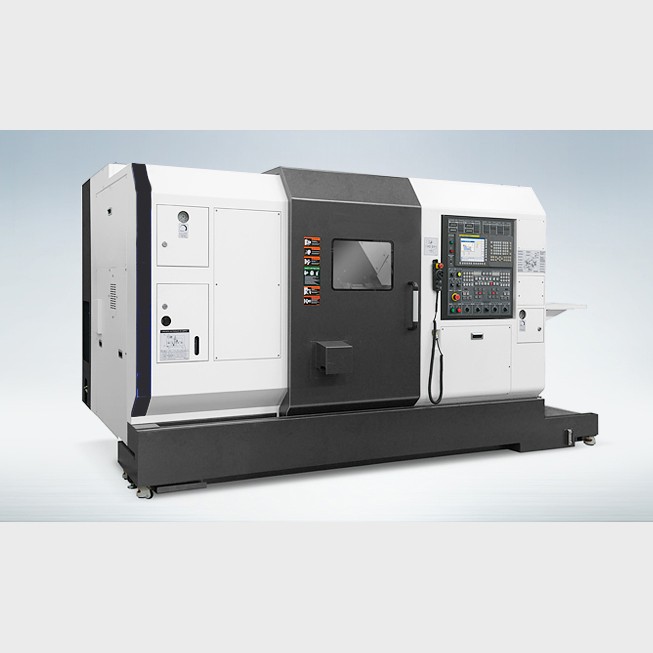

Description
Features
-
- Large output built-In spindle motor

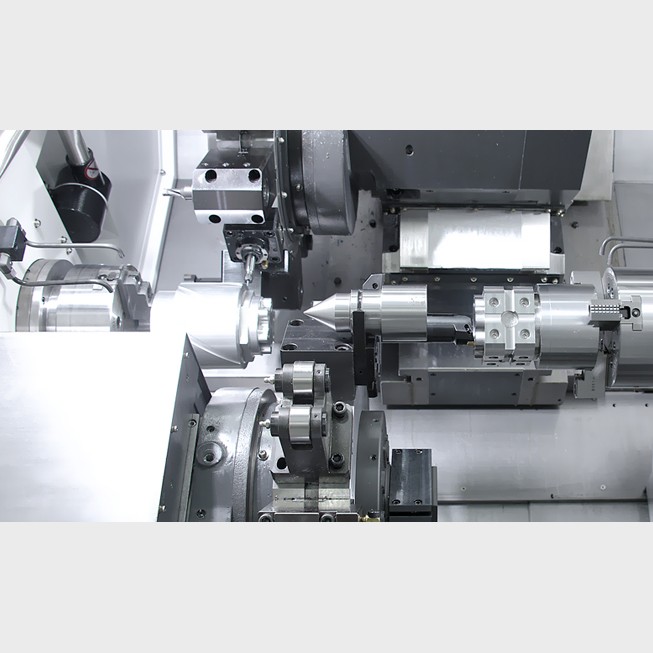

- High productivity guaranteed with simultaneous utilization of upper and lower turrets

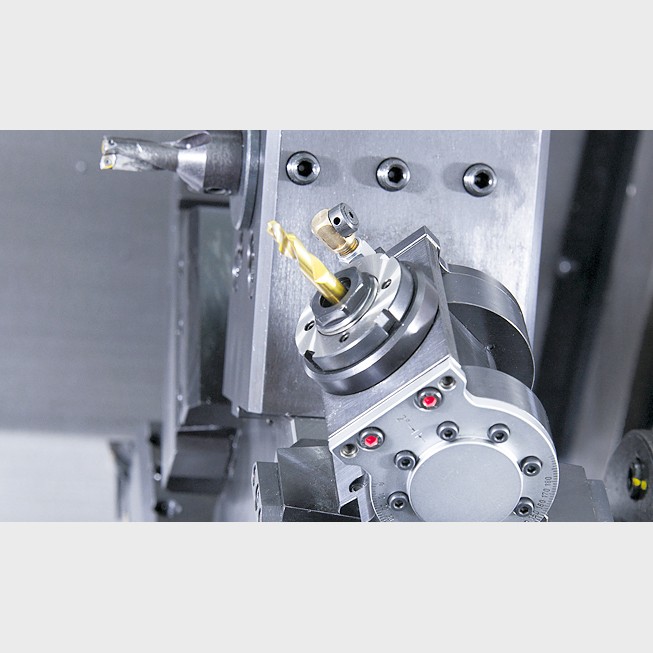

- Robust BMT turret
- Multitasking is possible with the addition of Y axis to the upper turret (TTSY specifications)

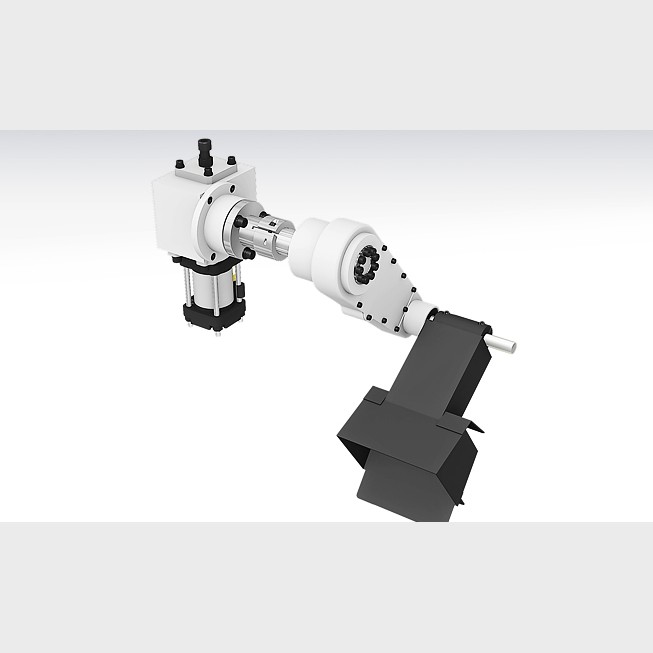

- Integrated processing through synchronized control of Main and Sub Spindle
- Design of the hybrid slideway, combining box guideway(X/Y-axis) and roller guideway(Z-axis) (TCM16/18TT Series)
Specifications
Units of Measure:
| Description | Unit | TCM16TTS | TCM16TTMS | TCM16TTSY |
|---|---|---|---|---|
| Max Turning Dia | mm | 230 | 230 | 230 |
| Max Turning Length | mm | 705 | 705 | 705 |
| Chuck Size | inch |
Main 6″ Sub 6″ |
Main 6″ Sub 6″ |
Main 6″ Sub 6″ |
| Driving Method | - | Built in | Built in | Built in |
| Spindle RPM | r/min | 6,000 | 6,000 | 6,000 |
| Spindle Output | kW | 15/11 | 15/11 | 15/11 |
| Spindle Torque | N.m | 208/140 | 208/140 | 208/140 |
| Travel(X1/X2/Z1/Z2/ZB) | mm | 165/195/700/720/700 | 165/195/700/720/700 | - |
| Travel(X1/X2/Z1/Z2/ZB/Y) | mm | - | - | 165/195/700/720/700/100 |
| Rapid Travel(X1/X2/Z1/Z2/ZB) | m/min | 20/20/40/40/40 | 20/20/40/40/40 | - |
| Rapid Travel(X1/X2/Z1/Z2/ZB/Y) | m/min | - | - | 20/20/40/40/40/7.5 |
| Slide Type | - | LM | LM | LM |
| No. of Tools | EA | 2 x 12 | 2 x 12 | 2 x 12 |
| Tool Size | mm | 20/32 | 20/32 | 20/32 |
| Milling Tool Speed | r/min | - | 5,000 | 5,000 |
| CNC | - | F31i | F31i | F31i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
