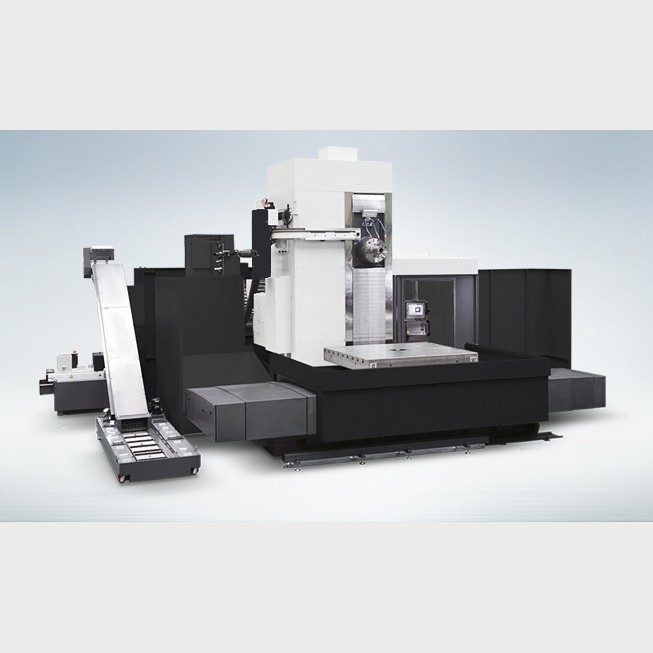

HTK1300C Heavy-Duty Boring Machine

Product Item：HTK1300C

Pallets Size: 2,000×1,800mm

Spindle RPM：2500r/min

Spindle Taper: BT50

No. of Tools: 60EA

Description

Features

- - One-piece bed construction for ultra precision
  - X-axis 4,000mm (157.5″) as an option
  - Gear Box driven spindle for heavy duty cutting
  - Optimal boring machining with W-axis travel of 700mm (27.6″)
  - Standard linear scale and rotary scale for ultra precision

Specifications

Units of Measure: mm

Description	Unit	KBN1300C
Pallets Size	mm	2,000×1,800
Max. Load Capacity	kgf	15,000 [20,000]
Spindle Driving Method	-	GEAR(2STEP)
Spindle Taper	-	BT50
Spindle RPM	r/min	2,500
Spindle Power	kW	37/30
Spindle Torque	N.m	3,377/2,739
Slide Type	-	BOX
No. of Tools	EA	60

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
