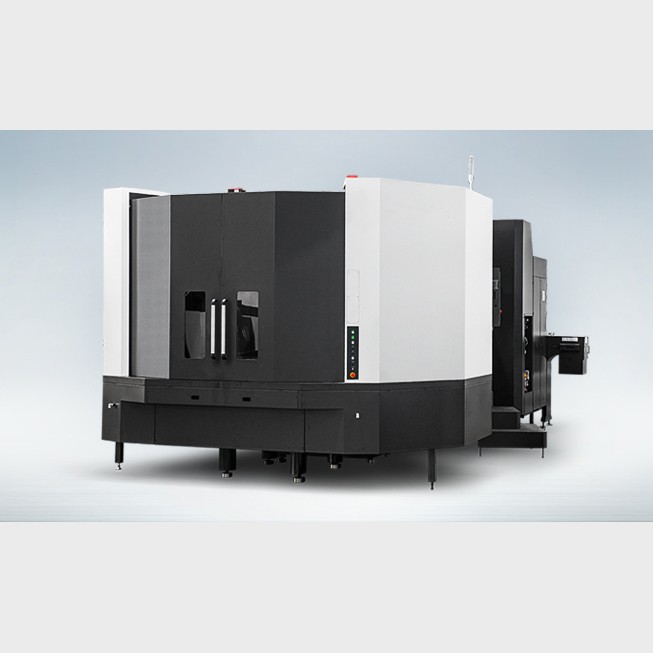

HH100 High Speed Horizontal Machining Center

HH100 High Speed Horizontal Machining Center

Product Item：HH100

Pallets Size: 1,000×1,000

Travel(X/Y/Z): 1,700/1,400/1,550mm

Spindle Taper: BBT50

No. of Tools: 60EA

Description

Features

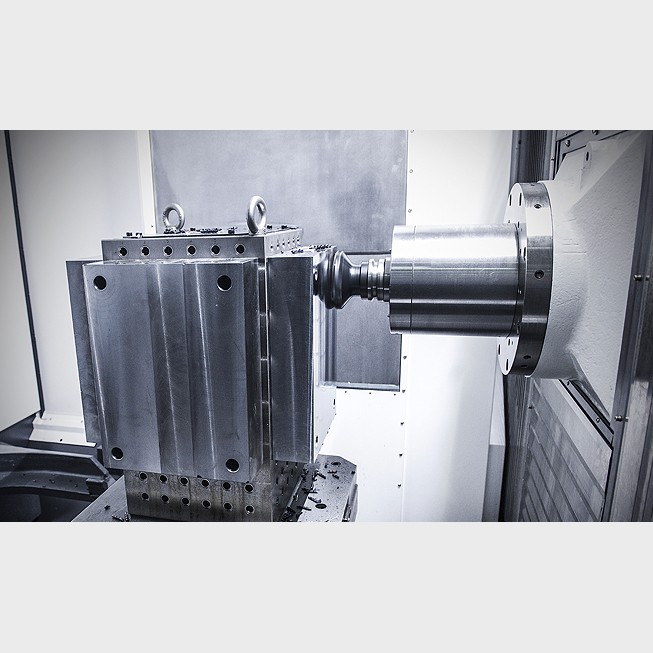

- - High-performance 10,000rpm built-in spindle

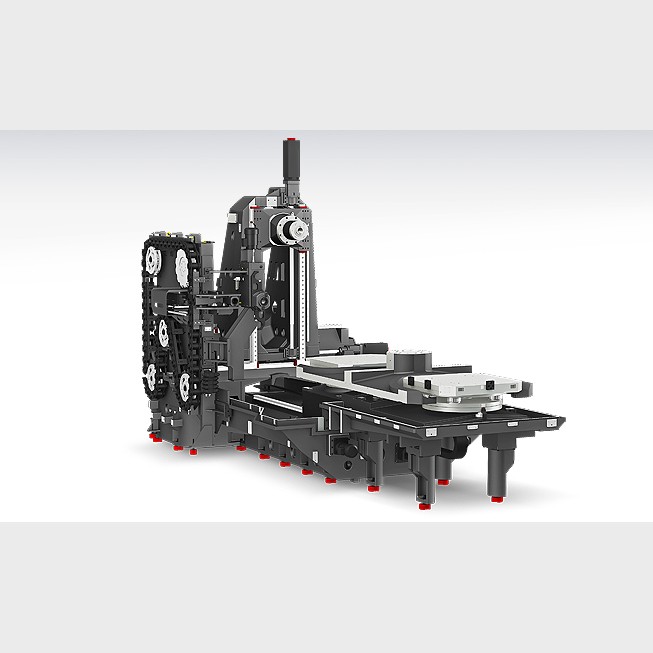

  - All-axis shaft cooling type ball screw
  - Application of the largest tool in its class
  - Rotary turn APC for high speed pallet change
  - Best-in-class rapid traverse rate of 50 m/min (1.969 ipm)
  - Adopted the latest controller of FANUC 31i B PLUS

Specifications

Units of Measure: mm

Description	Unit	HH100
Pallets Size	mm	1,000×1,000
Spindle Driving Method	-	Built in
Spindle Taper	-	BBT50
Spindle RPM	r/min	10,000
Spindle Power	kW	45/22
Spindle Torque	N.m	623/305
Travel(X/Y/Z)	mm	1,700/1,400/1,550
Travel(X/Y/Z)	mm	2 - 3,000
Rapid Feed Rate(X/Y/Z)	m/min	50/50/50

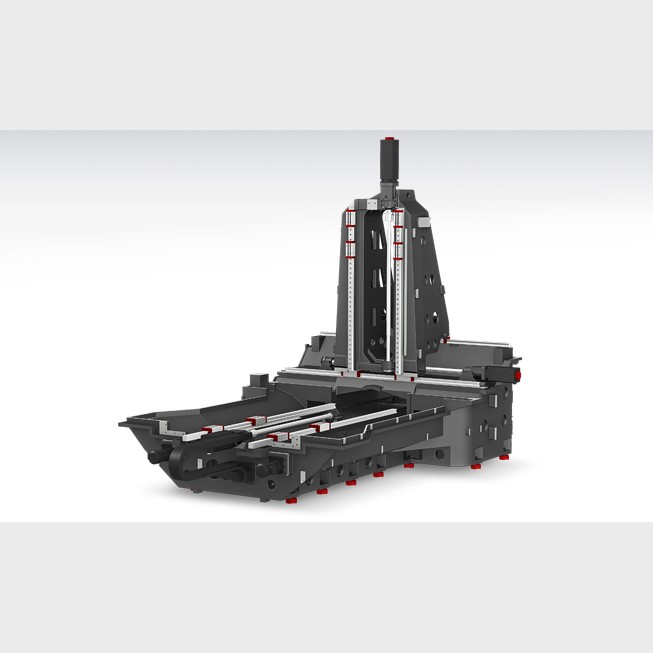

Slide Type	-	LM
No. of Tools	EA	60
Tool Change Time (Chip To Chip)	sec	4.1
No. of Pallets	EA	2
APC Type	-	ROTARY TRUN
Pallet Change Time	sec	25
CNC	-	F31i-B

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
