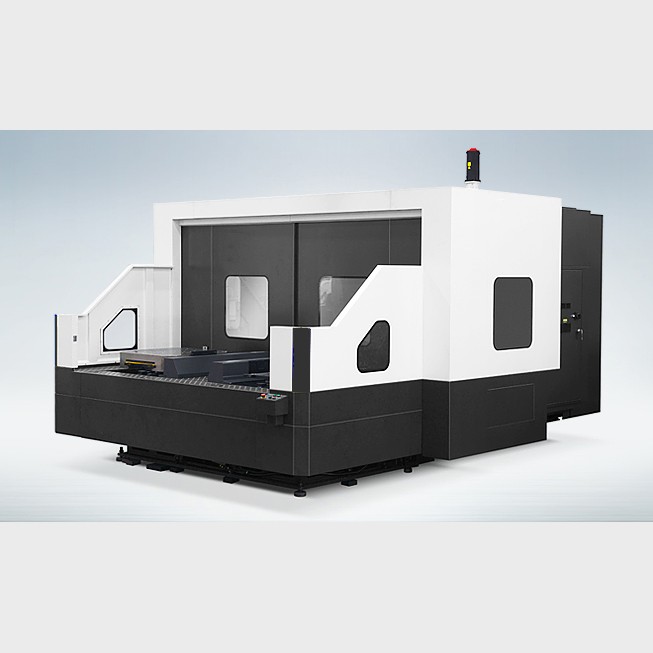

HB100 Heavy-Duty Cutting Horizontal Machining Center

HB100 Heavy-Duty Cutting Horizontal Machining Center

Product Item：HB100

Pallets Size: 1,000×1,000mm

Travel(X/Y/Z): 2,100/1,350/1,400mm

Spindle Taper: BBT50

No. of Tools: 60EA

Description

Features

- - - - Largest work area in its class with maximum processing size of 1,900 (74.8″) and 1,500mm (59″) height
      - High-torque 8,000 and 4,500rpm spindles available
      - Big Plus #50 2 Step Geared Spindle
      - Spindle Oil Cooling System for high accuracy

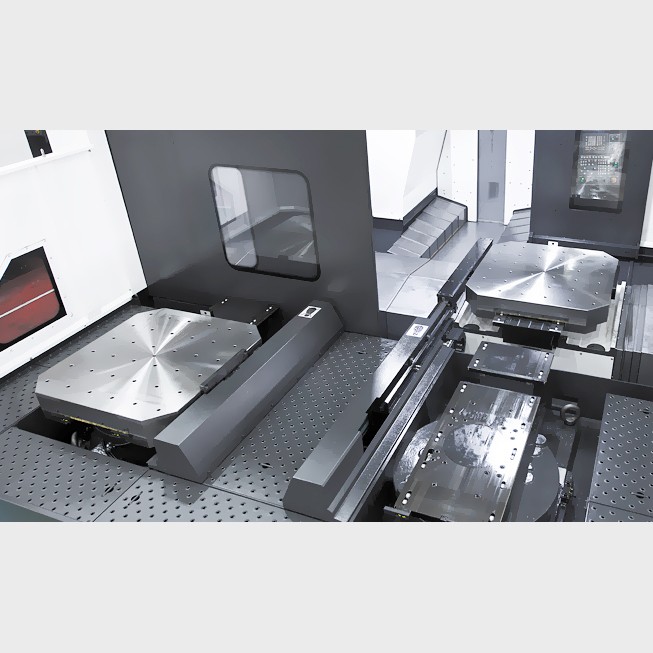

      - Shuttle Type Automatic Pallet Changer
      - Box Guides on All Axis for Superior Rigidity
      - Y axis box guideways with 8 face contact
      - Specially Designed Column which Minimizes Thermal Displacement

Specifications

Units of Measure: mm

Description	Unit	HB100
Pallets Size	mm	1,000×1,000
Max. Load Capacity	kgf	2 - 3,000
Spindle Driving Method	-	GEAR(2STEP)
Spindle Taper	-	BBT50
Spindle RPM	r/min	8,000
Spindle Power	kW	26/22
Spindle Torque	N.m	807/686
Travel(X/Y/Z)	mm	2,100/1,350/1,400
Rapid Feed Rate(X/Y/Z)	m/min	20/20/20
Slide Type	-	BOX

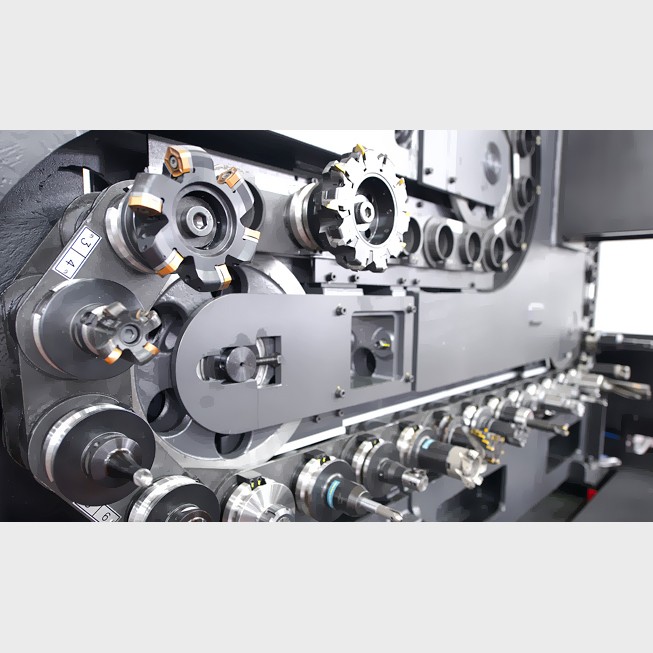

No. of Tools	EA	60
Tool Change Time (Chip To Chip)	sec	16.7
No. of Pallets	EA	2
APC Type	-	SHUTTLE
Pallet Change Time	sec	110

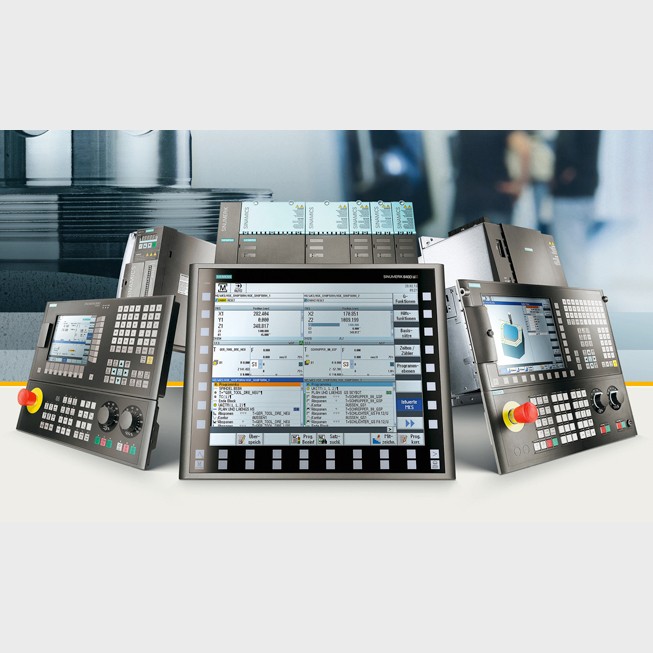

CNC	-	F31i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
