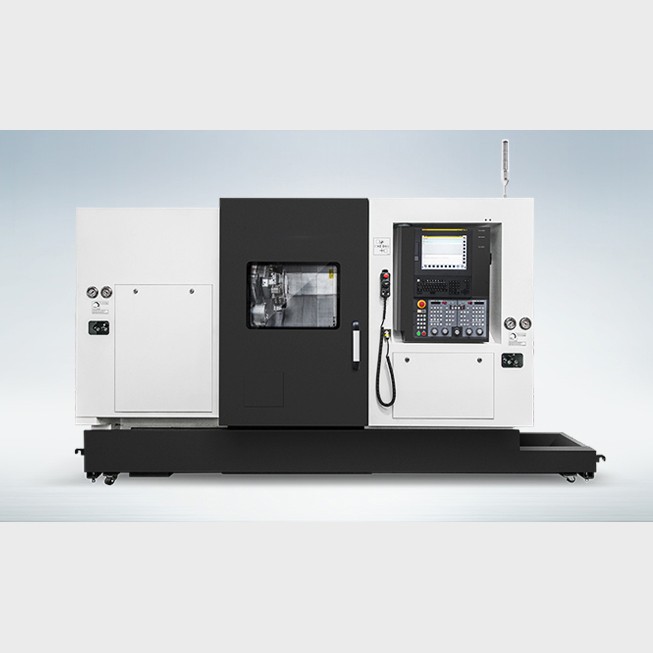

TCM22TTSYY | TCM22TTSYYC Multi-Axis Turning Center

Description

Features

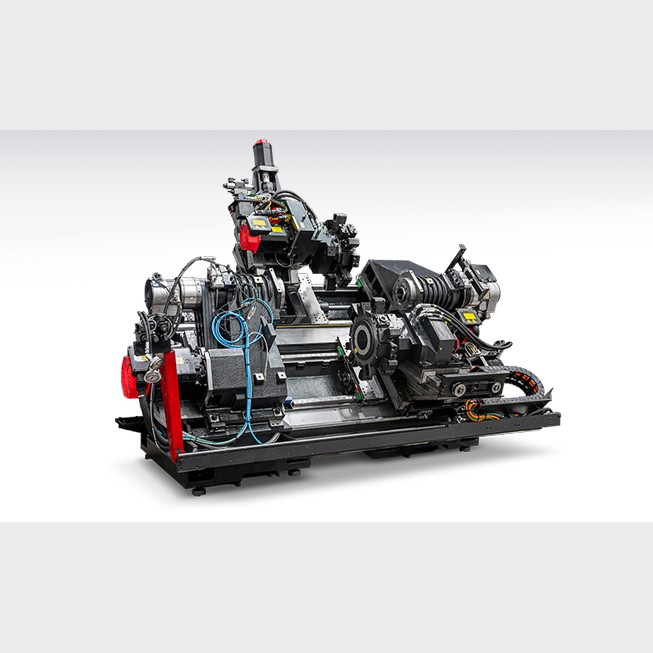

• • Complex machining ability enhanced through upper/lower twin turret & twin Y-axis structure
  • Front & rear surface machining with twin spindle
  • Hybrid travel structure with box guide & roller LM guide combination
  • Diverse work piece size coverage with 8″ & 10″ spindle configuration
  • High performance lastest FANUC control applied

Specifications

Units of Measure: mm

Description	Unit	TCM22TTSYY	TCM22TTSYYC
Max Turning Dia	mm	230	230
Max Turning Length	mm	673	660
Chuck Size	inch	Main 8″ Sub 8″	Main 10″ Sub 8″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	4,500	3,500
Spindle Output	kW	18.5/15	18.5/15
Spindle Torque	N.m	206/125	286/214
Slide Type	-	LM	LM
No. of Tools	EA	2×12	2×12
Tool Size	mm	20/32	20/32
Milling Tool Speed	r/min	5,000	5,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
