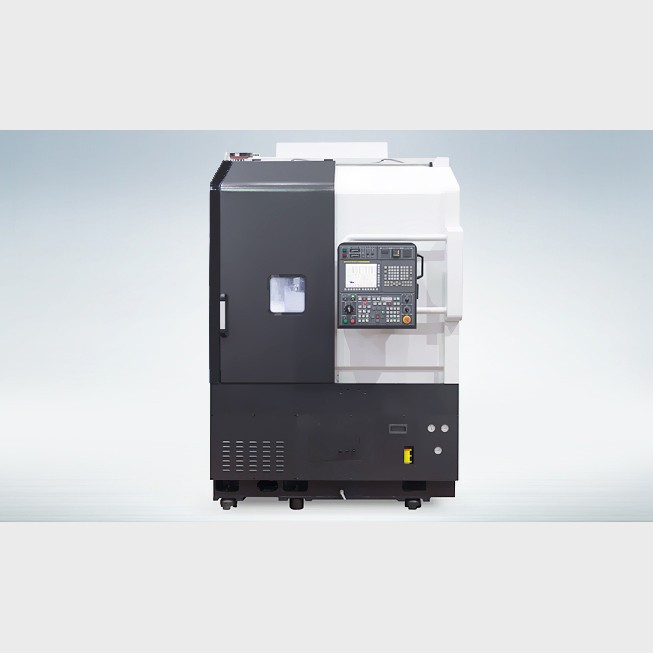

TCV50R/L | TCV50RM/LM Vertical Turning Center

Description

Features

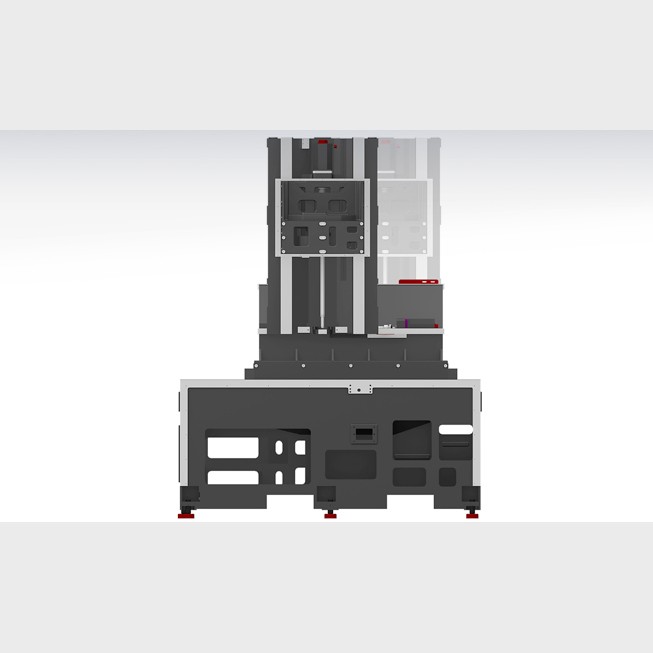

• • Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)
  • 2-step chuck pressure mechanism adopted to minimize material deformation
  • Various peripheral equipment can be used for rational machining
  • All-in-one machine structure incorporating power and oil supply functions in one body
  • Space design taking into account smooth ship treatment
  • “Right” and “Left” structure for the formation of rational automation

Specifications

Units of Measure: mm

Description	Unit	TCV50R/L	TCV50RM/LM
Max Turning Dia	mm	550	550
Max Turning Length	mm	600	600
Chuck Size	inch	15″	15″
Driving Method	-	Belt	Belt
Spindle RPM	r/min	2,000	2,000
Spindle Output	kW	22/18.5	22/18.5
Spindle Torque	N.m	824/693	824/693
Travel(X/Z)	mm	325/625	325/625
Rapid Travel(X/Z)	m/min	20/18	20/18
Slide Type	-	LM	LM
No. of Tools	EA	8[12]	12
Tool Size	mm	32/50	32/50
Milling Tool Speed	r/min	-	3,000
CNC	-	F32i	F32i

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
