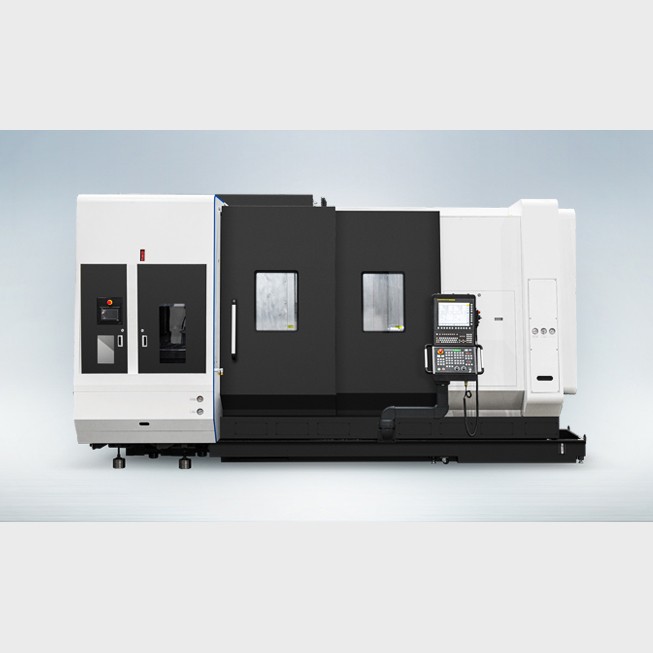

MU26 | MU26S | MU26ST Multi-Axis Turning Center

Description

Features

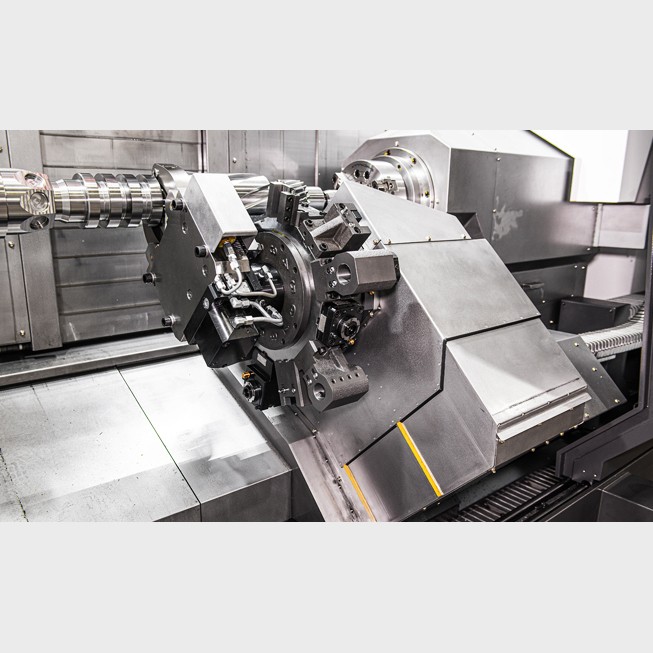

• • • The adoption of a milling head with a built-in B axis (0.0001control) enables the operator to perform turning and milling works in perfect harmony.

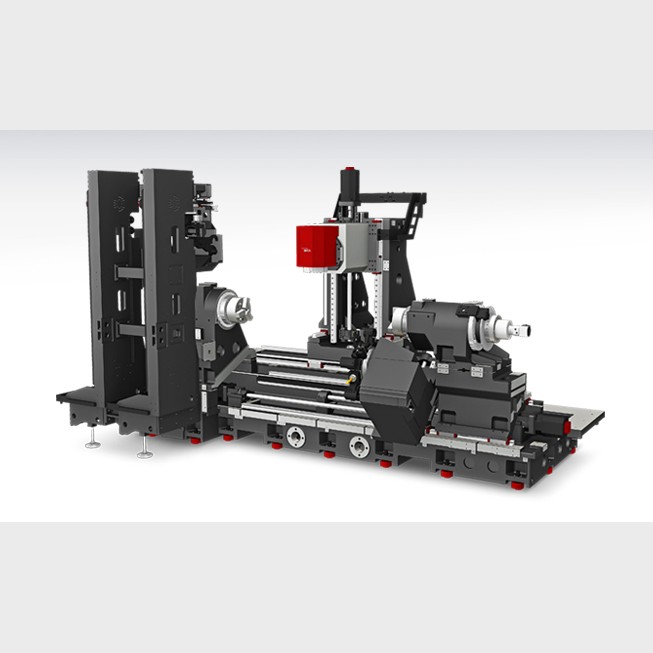

    • The highly rigid Y-axis structure makes it possible to process diverse shapes.
    • Application of CAPTO C6 tool for high speed complex machining
    • The model features built-in main & sub-spindles with high output and high torque.

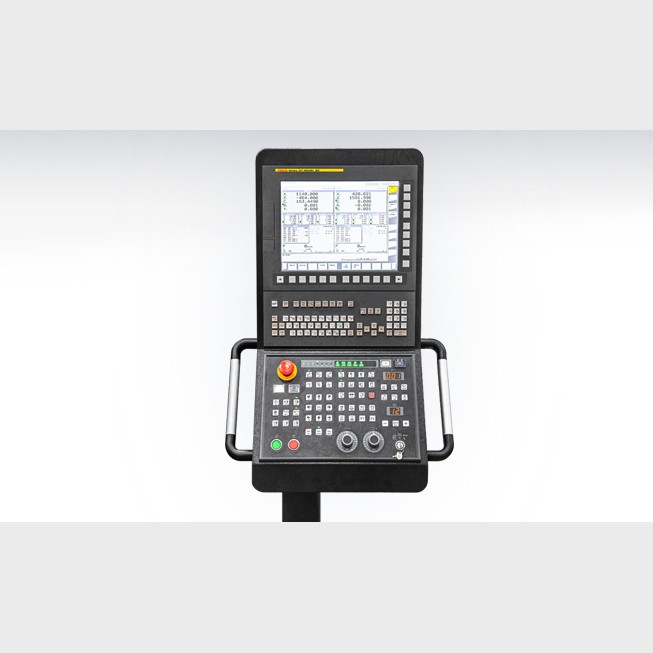

    • Adopted the latest FANUC 31i-B5 PLUS

Specifications

Units of Measure: mm

Description	Unit	MU26	MU26S	MU26ST
Max Turning Dia	mm	660	660	660
Max Turning Length	mm	1,540	1,540	1,540
Chuck Size	inch	Main 10″	Main 10″ Sub 10″	Main 10″ Sub 10″
Driving Method	-	Built in	Built in	Built in
Spindle RPM	r/min	4,000	4,000	4,000
Spindle Output	kW	30/22	30/22	30/22
Spindle Torque	N.m	724/410	724/410	724/410
Slide Type	-	LM	LM	LM
No. of Tools	EA	Mill head : 40T	Mill head : 40T	Mill head : 40T / Turret : 12T
Tool Size	mm	Mill head : D Ø130/ L450	Mill head : D Ø130/ L450	Mill head : D Ø130/ L450 / Turret : □25/Ø40
Milling Tool Speed	r/min	Mill head : 12,000	Mill head : 12,000	Mill head : 12,000 / Turret : 5,000
CNC	-	H/W FANUC i	H/W FANUC i	H/W FANUC i
Travel(X1/Z1/Y/X2/Z2/A)	mm	695/1,585/300/-/-/1,540	695/1,585/300/-/-/1,540	695/1,585/300/235/1,540/1,540
Rapid Travel(X1/Z1/Y/X2/Z2/A)	m/min	48/48/36/-/-/30	48/48/36/-/-/30	48/48/36/24/36/30

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
