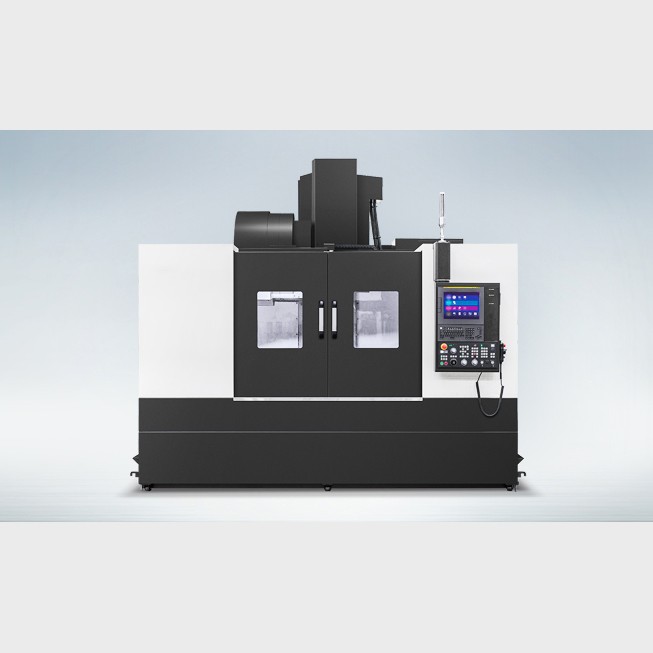

Description
Features
-

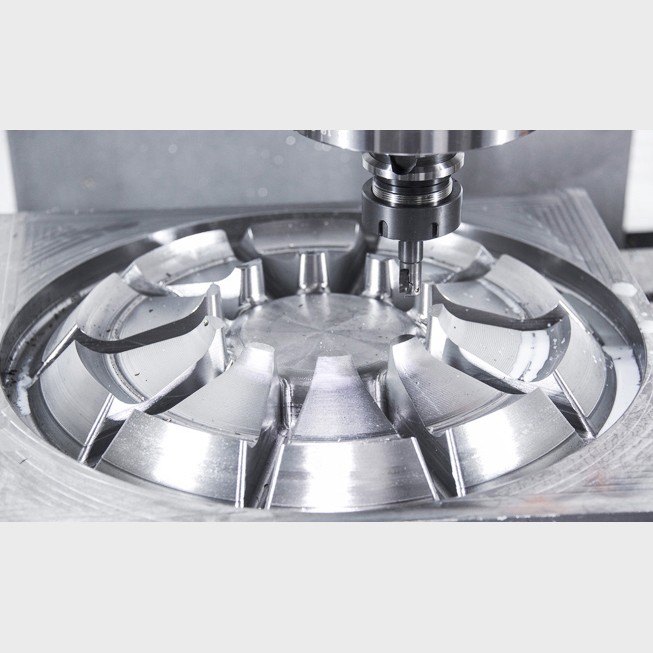

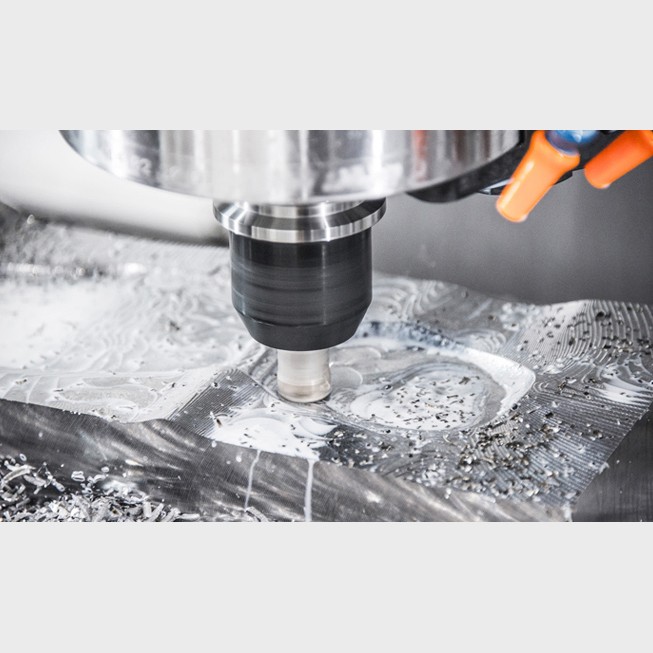

- High-precision machining by improved spindle quality

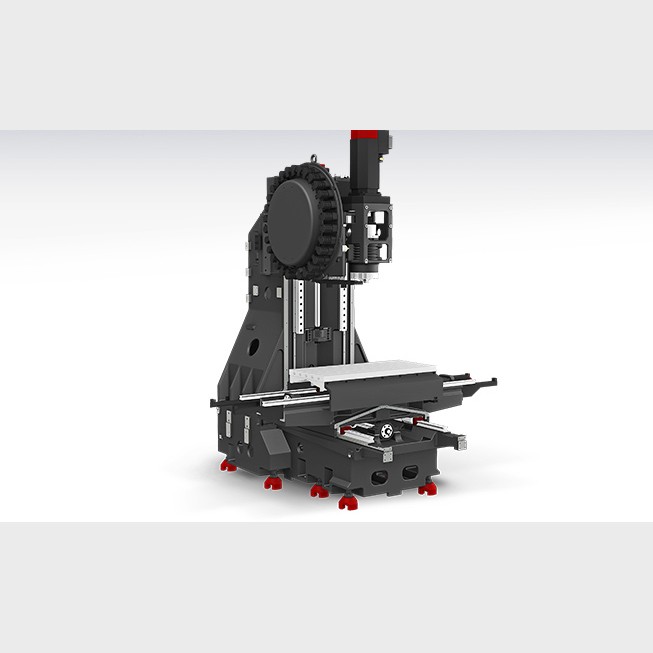

- High-speed roller type LM guide in all axes
- Enhanced chip disposal capabilities by applying the upper-type conveyor
- Various motors and columns provided for customized machining
- Improved user convenience by applying the latest controller of FANUC
Specifications
Units of Measure:
| Description | Unit | KV67MAX(8k) | KV67MAX(8k-OPT1) | KV67MAX(10k-OPT2) | KV67MAX(12k-OPT3) |
|---|---|---|---|---|---|
| Table Size | mm | 1500×670 | 1500×670 | 1500×670 | 1500×670 |
| Max. Load Capacity | kg | 1,300 | 1,300 | 1,300 | 1,300 |
| Spindle Driving Method | - | Direct | Direct | Direct | Direct |
| Spindle Taper | - | BBT40 | BBT40 | BBT40 | HSK-A63 |
| Spindle RPM | r/min | 8,000 | 8,000 | 10,000 | 12,000 |
| Spindle Power | kW | 18.5/11 | 15/11 | 18.5/11 | 18.5/11 |
| Spindle Torque | N.m | 118/52.5 | 286/143 | 118/52.5 | 118/52.5 |
| Travel(X/Y/Z) | mm | 1300/670/635 | 1300/670/635 | 1300/670/635 | 1300/670/635 |
| Rapid Feed Rate(X/Y/Z) | m/min | 36/36/30 | 36/36/30 | 36/36/30 | 36/36/30 |
| Slide Type | - | LM | LM | LM | LM |
| No. of Tools | EA | 30 | 30 | 30 | 30 |
|
Tool Change Time (Chip To Chip) |
sec | 3.5 | 3.5 | 3.5 | 3.5 |
| CNC | - | H/W FANUC i | FANUC 31i-B | FANUC 31i-B | FANUC 31i-B |
Description
Unit
KV67MAX(15k-OPT1)
KV67MAX(20k-OPT2)
Table Size
mm
1500×670
1500×670
Max. Load Capacity
kg
1,300
1,300
Spindle Driving Method
-
Direct
Built in
Spindle Taper
-
HSK-A63
HSK-A63
Spindle RPM
r/min
15,000
20,000
Spindle Power
kW
18.5/11
22/18.5
Spindle Torque
N.m
118/52.5
98/80
Travel(X/Y/Z)
mm
1300/670/635
1300/670/635
Rapid Feed Rate(X/Y/Z)
m/min
36/36/30
36/36/30
Slide Type
-
LM
LM
No. of Tools
EA
30
30
Tool Change Time
(Chip To Chip)
sec
3.5
3.5
CNC
-
FANUC 31i-B
FANUC 31i-B
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
